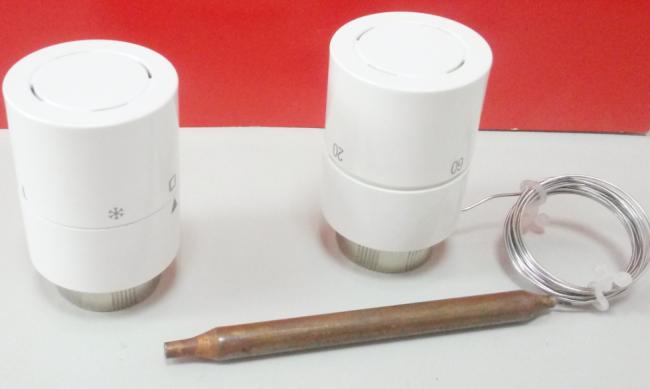

Remote Control Thermostatic Valve Head
Product Description
Remote Control Type Thermostatic Valve Head TF-42 is used to reduce the cost of heating. It uses the device's scale to set the desired room temperature. The thermostat completely blocks the coolant's flow when the radiator pushes it to the specified level. As soon as the temperature decreases, the feed resumes. This is very convenient and cost-effective from an economic point of view.
Features
-
Customizable capillary tube length
-
Remote distance sensing
-
Fast response time
Technical Specifications
|
Model |
TF-42 |
|
Temperature range |
20-60 ℃ |
|
Maximum static pressure |
1.0 MPa |
|
Maximum differential pressure |
0.1 MPa |
|
Maximum temperature resistance |
80 ℃ |
|
Installation size |
M30x1.5 |
|
Hysteresis |
0.4 K |
|
Thermal bulb |
Φ9.5x110mm |
|
Capillary length |
1000mm/ 2000mm |

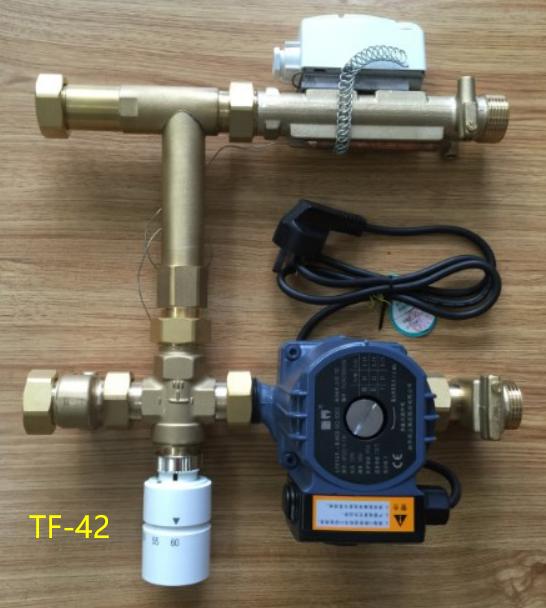

Below is the picture of the application of the thermostatic valve head with a remote sensor.
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
