Adaptor Electric Thermal Actuator replacement Underfloor 3mm Stroke
Price:
4-6 USD/pc
MOQ:
1,000 pcs
Delivery Time:
45 working days
Brand:
Tanger
Product Description

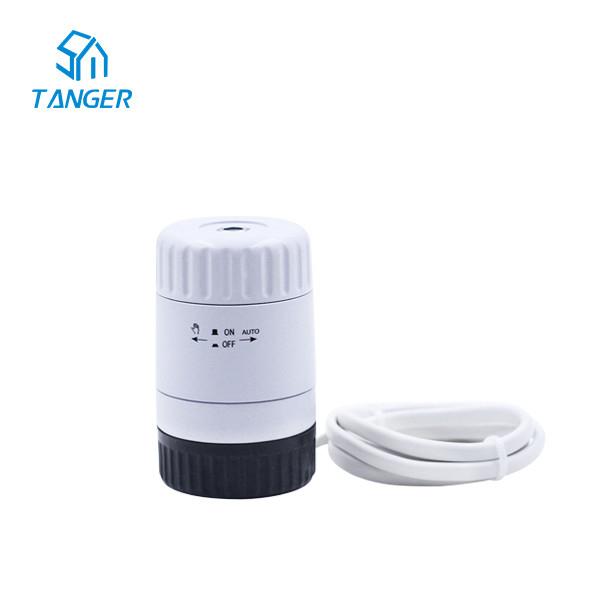

Electric Thermal Actuator DR-09
Product Description:
Thermal actuators are designed for controlling valves in HVAC automation systems. The thermal actuator can be controlled by 230Vac/24 Vac on/off control signal.
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. First open function.
6. Superior reliability with long service life expected.
7. With adaptor for fast connection.
Specifications:
| Model | DR-09 |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 3mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |
| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Normally closed(NC) |
