m28 Remote Sensing Trv Head Temperature Controller Spiral Immersion Sensor
Product Description
Remote Temperature Controller TRV Head With Spiral Immersion Sensor TF-36 has a thin capillary tube running away from it to a position away from the Radiator with a temperature sensing bulb at the end, which is usually clipped into a small plastic bracket/box with a lid and then clipped onto the front with small gaps allowing for air temperature sensing.
These sensing bulbs can fail after a while or get damaged, as can the capillary tube making the TRV completely ineffective.
As the Radiator is boxed in, a typical TRV / TRV head would be no good. So You will need to find a compatible TRV with a remote sensor - fit the Head and run the sensor tube, etc., to a suitable position away from the Radiator.
Ideally, renew the Remote Sensing TRV, including the Valve, plus run the sensor tube, etc., as you know that it has been fitted for a long time, and the pin will almost certainly not be as accessible as it once was.
Features
- Remote sensor for water
- Equipped with memory-clip
- Equipped with limiting and blocking tabs
Materials
- Handwheel and lid made of plastic, white RAL9010
- Socket made of grey plastic
- Support cage and spindle construction made of plastic
- Liquid-filled copper sensor vial with copper capillary tube
Technical Specifications
| Model | TF-36 |
| Temperature range | 20~70 ℃ |
| Maximum static pressure | 1.0 MPa |
| Maximum differential pressure | 0.1 MPa |
| Maximum temperature resistance | 80 ℃ |
| Installation size | M30x1.5 |
| Brass nut size | G1/2" |
| Hysteresis | 0.4 K |
| Thermal bulb | Φ15.3x95mm |
| Capillary length | 1000mm |

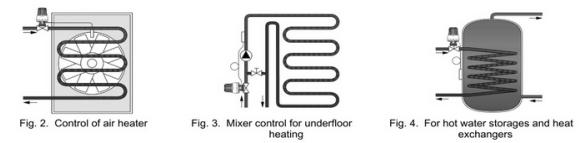

Installation and Precautions

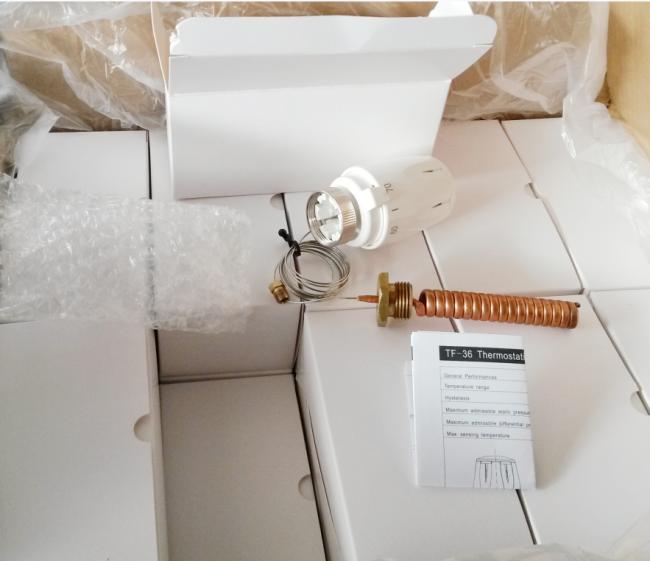

Below is the picture of the packaging of the thermostatic valve head with a spiral immersion sensor.
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
