10mm 15mm Angled Thermostatic Radiator Valve Trv Angled Valve
Price:
Negotiable
MOQ:
1,000 pcs
Delivery Time:
50-60 days
Brand:
TANGER
Product Description
Product Description
15mm Angled Thermostatic Radiator Valve DN15-B2 is an angled valve for manual or automatic regulation of heating medium flow through the heating device. The latter case usually has a thermostatic head controlled using an inside temperature sensing element. This valve with thermostatic heads enables you to automatically maintain the set temperature.
Features
- Energy efficient
- Simple installation
- Compact
Technical Specifications
| Model number | DN15-B2 |
| Size | 1/2" |
| Maximum static pressure | 10bar |
| Maximum differential pressure | 1 bar |
| Temperature resistance | 5-100°C |
| Flow capacity | 1.5 |

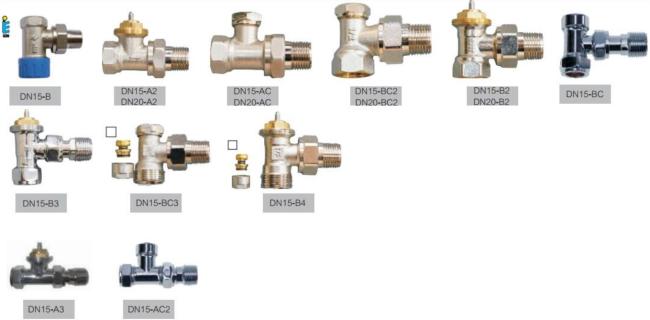

Below are more types of thermostatic radiator valves.
|
Model |
Size | Description | Maximum static pressure | Maximum differential pressure | Temperature resistance | Kvs | Remark |
| DN15-A2 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.3 | |
| DN15-B2 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | UK market |
| DN15-B3 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 2.0 | UK market |
| DN15-B4 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-BC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | Chrome, UK market |
| DN15-BC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC3 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | Chrome |
| DN15-AC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-AC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.14 | chrome, UK market |
| DN20-A2 | 3/4" | Straight | 10bar | 1bar | 5-100°C | 2.2 | |
| DN20-B2 | 3/4" | Angle | 10bar | 1bar | 5-100°C | ||
| DN20-AC | 3/4" | Lockshield | 10bar | 1bar | 5-100°C | 2.4 | |
| DN20-BC2 | 3/4" | Lockshield | 10bar | 1bar | 5-100°C |
Why us?
- A more substantial production capacity: The production area is 27,000 square meters.
- Industrial and packaging designers: Provide OEM and ODM services and help many international companies develop new products.
- Professional technical team: Mechanical and Electrical engineers support before and after sales.
- Various detailed products: There are more than 1,000 articles in our product catalog.
- Face-to-face communication: We will attend many professional exhibitions yearly, such as AHR America, ISH Frankfurt, MCE Milano, ISK-SODEX, etc.
- A solid management system: We have ISO 9001 and factory audit approval from home and abroad.
- Mold and injection molding ability: We have 15 machines, ten continuous die stamping machines, and four circuit board placement machines.
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
