TANGER Thermostatic Radiator Head Temperature Sensor Trv Valve Head Iron Housing
Thermostatic Temperature Sensor TMS-04
Product Description
TMS-04 liquid thermostatic sensors are specially designed for being used in thermostatic radiator valves. It's small in size and lightweight, and easy to install.
Features
- Without any auxiliary energy
- Responsive
- Priority shipping
- Thermal expansion and cold contraction
-
Compatible with most Thermostatic Radiator Heads
Technical Specifications
| Model number | TMS-04 |
| Working range | 5°C-30 °C with a load of 50N |
| Extension | 0.22±0.11mm/°C |
| Workload | 40/80N |
| Minimum workload | 40N |
| Maximum workload | 120N |
| Min/max. temperature | -25°C to 55 °C |
| Hysteresis/K | <0.12 |
| Total expansion | 4.84±0.22mm between 6-28 °C with a load of 50N |
| "X" | X=6.5±0.2mm |
| Total expansion | 2.2±0.11mm between 15-25°C with a load of 50N |

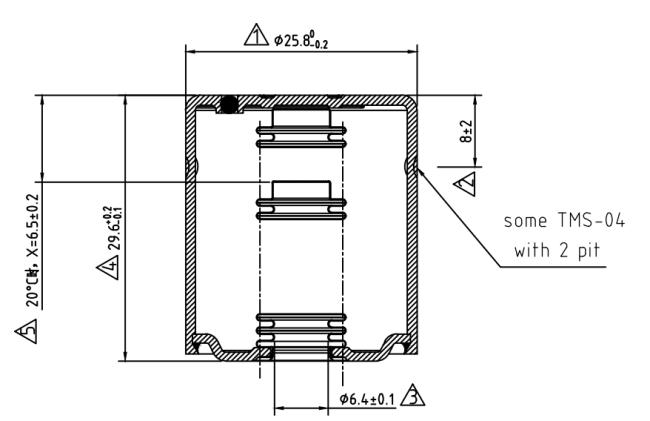

Overall Dimensions
Section view
Liquid sensors can not work independently and are usually installed in radiator thermostatic valve heads.
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
|
Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
|
Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
