Water Underfloor Heating Manifolds Flow And Return Meter 1/2" Thread
Underfloor Heating Manifolds Flow Meter Return Circuit G1/2"
Underfloor heating manifolds all come standard with balancing valves and flow meters. These components are fixed to the supply side of the manifold and are used to balance and correct the flow of water or water/glycol mix through the manifold.
This type of flow meter is installed in the return pipe bar of the underfloor heating manifold in a horizontal or vertical position.
Note: The flow rate indication is only for reference; it may have tolerance.
Features
- Precise and quick balancing
- Flow rate displayed directly in L/min on the transparent sight glass
- Straightforward installation
- Seals: EPDM
Applications
- Heating or cooling areas
- Apartment blocks, housing
- Residential care facilities
- Hotels, schools, restaurants, etc
- Commercial and industrial areas
Specifications

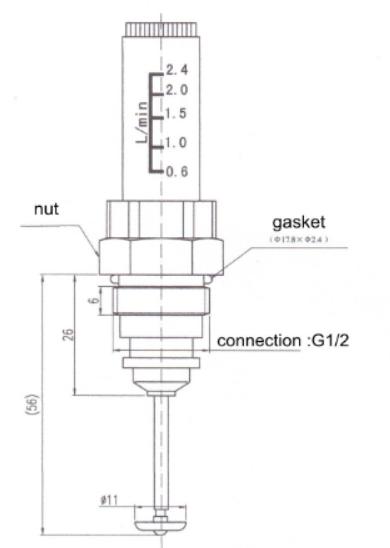

| Thread connection | G1/2" |
| Flow range | 0.6-2.4 L/min |
| Maximum admissible static pressure | 1.0MPa |
| Maximum admissible fluid temperature | 95 degrees |
| Fluid | Water |
| Temperature | -10 to 70 degrees |
