Bulb High Temperature Capillary Thermostat Adjustment Knob 300 Degrees 250VAC 16A
300 Degrees high temperature 250V AC 16(4)A Knob Adjustment Capillary Thermostats
300 Degrees High Temperature 250V AC 16(4)A Knob Adjustment Capillary Thermostats
Product Desciption:
Capillary thermostats are used to control heating elements. Based on the set temperature, the sensor closes as the temperature rises and opens as the temperature falls.
Application:
Temperature control of washing machine, water heater, electric oven and other similar equipment with manual reset function and sensor leakage protection.
Features:
1. Bulb failsafe safety.
2. Adjustable functional temperature with customizable external knob.
3. Easy cabling.
4. Customizable functional and safety capillaries length.
5. Max functional temperature 300 °C.
6. With manual reset
Specifications:
| Model | WPR-300E |
| Temperature range | 50-300℃ |
| Voltage | 230V AC |
| Current | 16(4)A |

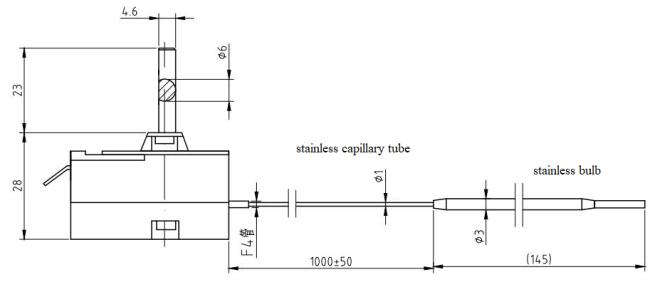

| Capillary length | 1000± 50 mm |
| Maximum temperature resistance | Body 80℃, sensing element 350℃ |
| Differential | 6±3 ℃ |
| Contact resistance | ＜50mΩ |
| Insulation resistance | DC500V, >100mmΩ |
| Wiring diagram | S.P.S.T |
