One Single Zone Underfloor Heating Control Box Flush Return Temperature Limiter

Price Negotiable
Price: Negotiable
MOQ: 200 pcs
Delivery Time: 50-60 working days
Brand: TANGER
Product Description

Underfloor Heating Temperature Control Box With Flush Return Temperature Limiter Singe Room Control

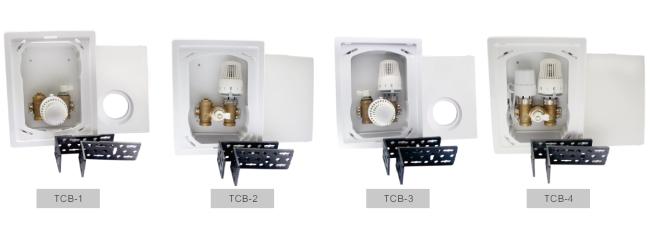

TCB Series Temperature Control Multibox  TCB-3

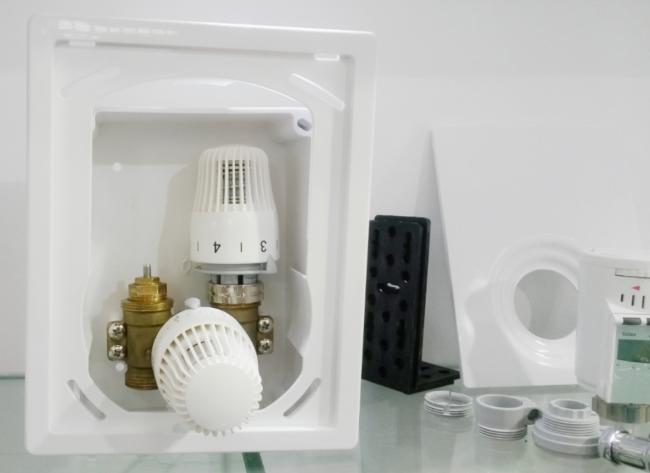

The TCB-3 is used to control the temperature of water flow back. It consists of a flush box, cover plate, frame, black slide rail, thermostats, thermostatic valve, return temperature limiter, screws. The valve will be open as soon as the value is lower than the set limit.





Specifications



Model



TCB-1 TCB-2 TCB-3 TCB-4

Temperature range



6~28℃ 10~50℃ 6~28℃/10~50℃ 10~50℃

Max. admissible static pressure



1.0MPa 1.0MPa 1.0MPa 1.0MPa
Max. admissible differential pressure 0.1MPa 0.1MPa 0.1MPa 0.1MPa

Kvs



1.35 1.35 1.35 1.35

Installation depth



60mm 60mm 60mm 60mm

Connection size



G 3/4'' G 3/4'' G 3/4'' G 3/4''

Thermostatic head



TF-6 TF-23 TF-6 & TF-23 DF-110E & TF-23
