Water Underfloor Heating Control System Zoned Thermostat Controller
Price:
Negotiable
MOQ:
200 pcs
Delivery Time:
50-60 working days
Brand:
TANGER
Product Description

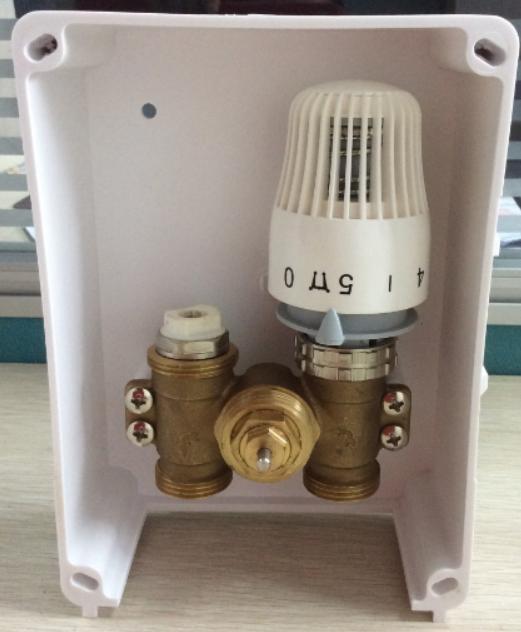

Temperature Control Box For Underfloor Heating Systems
TCB Series Temperature Control Multibox TCB-2
Application:
Control the temperature of the water flows back, heating control for water heating system.
Specifications
|
Model
|
TCB-1 | TCB-2 | TCB-3 | TCB-4 |
|
Temperature range
|
6~28℃ | 10~50℃ | 6~28℃/10~50℃ | 10~50℃ |
|
Max. admissible static pressure
|
1.0MPa | 1.0MPa | 1.0MPa | 1.0MPa |
| Max. admissible differential pressure | 0.1MPa | 0.1MPa | 0.1MPa | 0.1MPa |
|
Kvs
|
1.35 | 1.35 | 1.35 | 1.35 |
|
Installation depth
|
60mm | 60mm | 60mm | 60mm |
|
Connection size
|
G 3/4'' | G 3/4'' | G 3/4'' | G 3/4'' |
|
Thermostatic head
|
TF-6 | TF-23 | TF-6 & TF-23 | DF-110E & TF-23 |
