Single Room Thermostat With Frost Protection -5 To 15c Single Pole Throw Surface Mount
-5 Degrees To 15 Degrees 16Amp Room Frost Thermostat Indoor Single Pole Single Throw Surface Mount Room Thermostat
ROOM THERMOSTAT
Frost thermostat gas-filled bellows operating, SPDT OR SPST contacts, is particularly suitable for commercial premises besides home industrial heating and air conditioning applications.
Assembly: The thermostat must be assembled approximately 1.5m from the floor in a zone reflecting the medium room temperature. Avoid installing in zones with air stagnation near the doors, windows, heat sources, etc.
Installation-Remove the cover by releasing the clip. Fix the device to the wall using two screws. Maximum diameter 3.5mm, using the holes (B-B) provided in the base.
N.B. The thermostat is for use on fixed wiring only.
Features
-
Easy-to-use, menu-driven programming helps your customers save up to 33% off energy bills
- CE approved
- OEM & ODM service
- Wall-mounted frost thermostat
- Simple dial for adjusting temperature set-point
-
Save energy and money by preventing unauthorized setting changes
- LED light
Technical Specifications
| Model | TR-TC2 |
| Power supply | 250VAC |
| Current | 10(2.5)A |
| Temperature range | -5 to 15℃ |
| Differential | Δt. 0.4K/0.8K |
| Protection class | I |
| Protection level | IP20 |
| Temperature rate of change | 15min./1K |
| Dirty resistance | Normal ambient |
| Number of automatic cycles | 100,000 |
| Mounting | Surface |

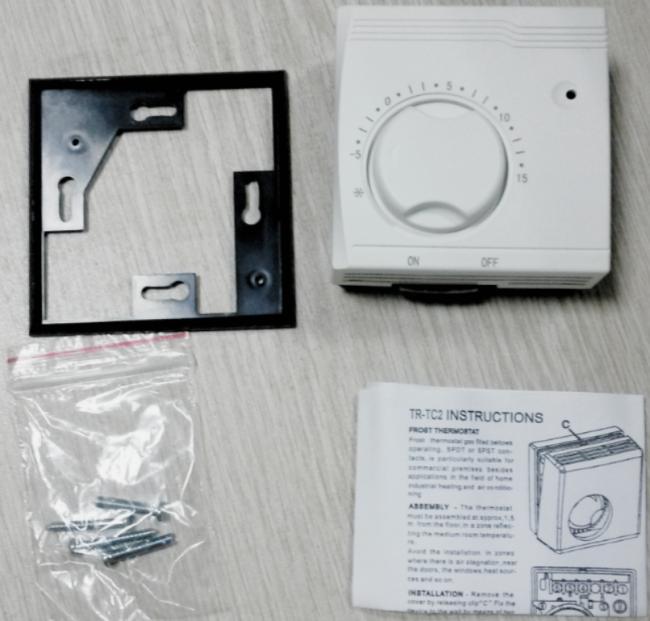

Packaging details
Thermostat x1
Mounting plate x1
Screws x4
Instruction x1
