Adjusting Underfloor Heating System Manifold Mixing Water Thermostatic Pump Mixer
Thermostatic Pump Mixer Water Heating System Mix Water System For Water Underfloor Heating Manifold
The control unit "TMC" is used for constant flow temperature control in surface heating system.

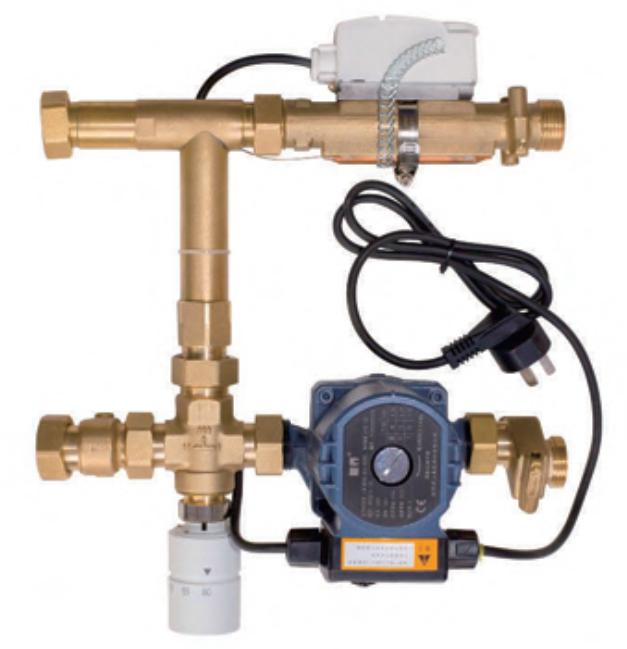

DN25 Thermostatic pump mixer blender for Water Underfloor Heating Manifold mixing valve water mixing center water mixing systemWater Underfloor Heating Manifold Pump mixing valve unit brass
|
Technical specifications
| Model | TMC |
| Power supply | 220V AC |
| Frequency | 50/60Hz |
| Temperature range | 0 - 90 degrees |
| Temperature regulation range of thermostatic head | 20 - 60 degrees |
| Maximum admissible static pressure | 6 bar |
| Maximum admissible differential pressure | 0.75 bar |
| Head diameter | DN25 |
| Range of lift | 1-5m |
| Range of flow | 0-3500L/h |
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
