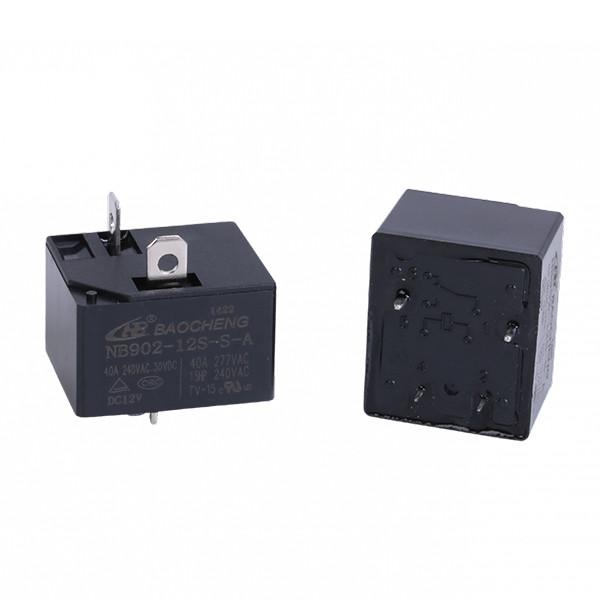

Auto Industry 12V 50A Relay NB902-12S-S-A Small Volume Large Capacity For Medical Equipment

Auto Industry 12V 50A Relay NB902-12S-S-A Small Volume Large Capacity Medical Equipment

12V 50A Relay Description:

NB902 series power relay, small size with big capacity, maximum 50A.There are PCB mounts and bolt quick connections for assembly, special design for water heaters, air conditioners, etc.4KV dielectric withstand between coil and contact and passed TUV/CQC/UL safety standard, it is an environmental-friendly and reliable product, be suitable for many fields, like the automobile industry, industry control, home appliances, and medical equipment.

12V 50A Relay Features:

1. Using brass pins, in line with European standards.
2. It can keep a low temperature for 8 hours when working
3. High load switching capacity: 50A
4. Dielectric strength between contact and coil: 4000VAC; between contact and contact: 1500VAC, 3000VAC can be customized
5. Suitable for new energy equipment, EV charging piles, etc., with strong anti-surge capability.
6. Coil isolation class Class F

12V 50A Relay Introduce:

It is the latest design relay that complied with EU standards.PIN widen, brass material, Gap with 3.0mm, high coil power 2.25W, between contacts and between coil & contacts both are 4000VAC, especially use for EV charging equipment of new energy field.

12V 50A Relay Specification:
