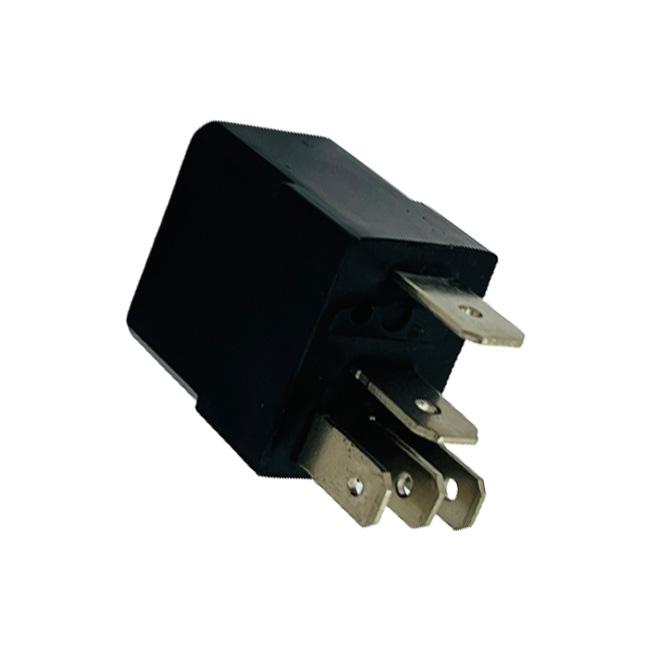

DC 12V 40A SPST Sealed Power Relay BM940-A-S For EV Car Charging Station
DC 12V 40A SPST Sealed Power Relay BM940-A-S For EV Car Charging Station
40A Power Relay Description:
BM940 series universal automotive relay has a large contact load, and a rated current is 40A, but the maximum is 45A at 14VDC, which can suffer a big inrush current. Small size, PCB mounting,11mm pin pitch for EU type,8mm pin pitch for USA type, SPST and SPDT to option, especially use in automatic control equipment and automobile industry...
40A Power Relay Features:
1. size 26.8*21.5*22.3mm, only 19g
2. SPST or SPDT,11mm or 8mm pin pitch for option
3. rated current 40A
4. sealed,dust-proof or open type to select
40A Power Relay Introduce:
A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
40A Power Relay Specification:
| Coil Rating | ||||||||
| No. | Coil Voltage(VDC) | Coil ResistanceΩ±10% | Pick up (VDC) Max. (75% of Rated Voltage) | Drop out (VDC) Min.(10% of Rated Voltage) | Power (W) | Operate Time (ms) | Release Time (ms) | |
| Rated | Max. | |||||||
| 005-250 | 5 | 5.5 | 42 | 3.5 | 0.5 | 0.6 | ≤10 | ≤5 |
| 006-250 | 6 | 6.6 | 60 | 4.2 | 0.6 | |||
| 009-250 | 9 | 9.9 | 135 | 6.3 | 0.9 | |||
| 012-250 | 12 | 13.2 | 240 | 8.4 | 1.2 | |||
| 024-250 | 24 | 26.4 | 960 | 16.8 | 2.4 | |||
| 005-540 | 5 | 5.5 | 31 | 3.5 | 0.5 | 0.8 | ≤10 | ≤5 |
| 006-540 | 6 | 6.6 | 45 | 4.2 | 0.6 | |||
| 009-540 | 9 | 9.9 | 101 | 6.3 | 0.9 | |||
| 012-540 | 12 | 13.2 | 180 | 8.4 | 1.2 | |||
| 024-540 | 24 | 26.4 | 720 | 16.8 | 2.4 | |||
