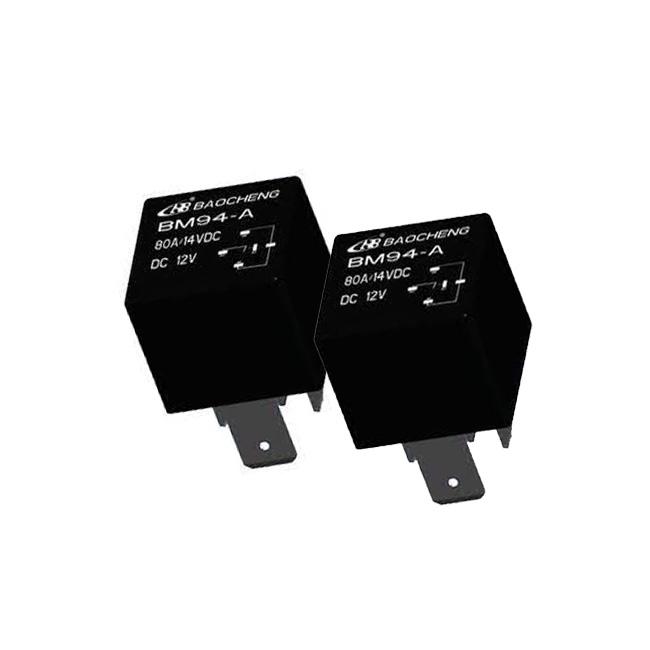

1.6W Universal SPST Automotive Relay 12V 40A Fast Plug BM94-A For EV Charging Grant
Price:
negotiable
MOQ:
100pcs
Delivery Time:
4weeks
Brand:
NBC
Product Description
1.6W Universal SPST Automotive Relay 12V 40A Fast Plug BM94-A For EV Charging Grant
Universal Automotive Relay Description:
BM94 series universal automotive relay has a large switching capacity, maximum can reach 80A, DC6V-DC24V input, Various mounting terminals available,dust-proof feature, NO., NC., NO. & NC. contact to option, reliable and environmental-friendly, especially use for the automobile industry
Universal Automotive Relay Feature:
1. coil power consumption 1.6W or 1.9W for options
2. environmental-friendly
3. various mounting terminals available
4. rated current max.80A
Universal Automotive Relay introduces:
A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.
Universal Automotive Relay Technical Rating:
| Insulation Resistance | 100MQ(500VDC)Min. | |
| Dielectric Strength | Between Open Contacts | 500VAC 50Hz |
| Between Contact and Coil | 4000VAC 50Hz | |
| Shock Resistance | Operation extremes 10G, Damage limits 100G | |
| Vibration Resistance | Operation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G | |
| Ambient Temperature | -40°C ~ 85°C | |
| Relative Humidity | 85% (20°C ) | |
| Weight | 6g | |
