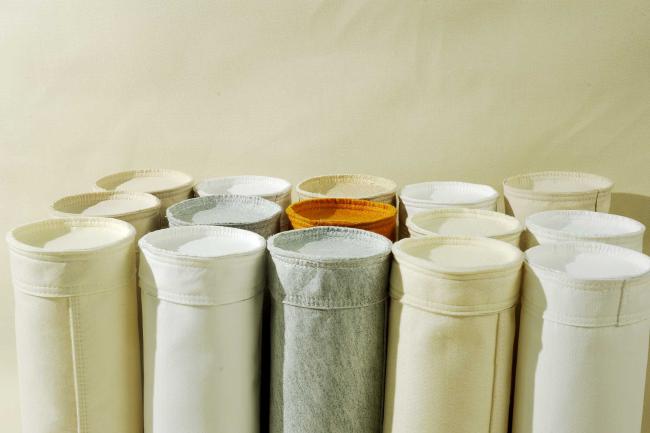

5 Micron Smoke Polyester Industrial Filter Bags D160 *L3050mm ISO9001
Asphalt Mixing Smoke Filter, Nomex Filter Bag D160 *L3050mm With Dimensional Stability

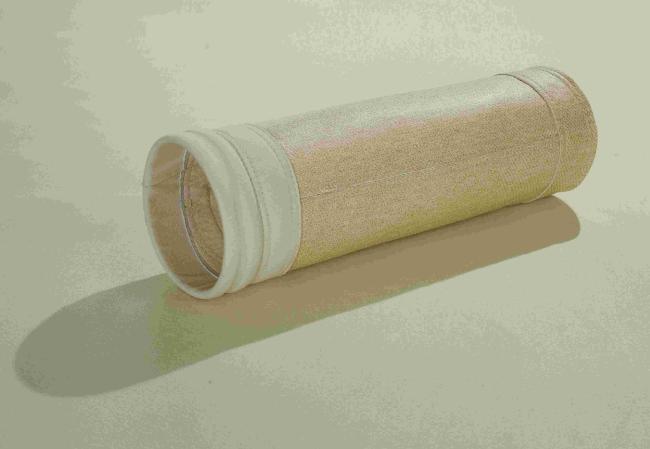

Asphalt mixing smoke filter Nomex filter bag D160XL 3050
Nomex filter bag for higher temperature dust filtration, widely applied in Asphalt mixing plant, Kiln smoke in cement plant, steel melting furnace smoke and so on.
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.
Speciality
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
The technical data of Nomex needled felt
Nomex filter bag, Nomex filter, Aramid filter, Aramid bag filter, Nomex bag filter.
Specifications:
| Article Name | Nomex needled felt | |
| Ingredients | Fiber | 100% Nomex |
| Scrim | 100% Nomex | |
| Weight | g/m2 | 500 |
| Thickness | mm | 2.1 |
| Density | g/m³ | 0.24 |
| Permeability | L/dm2.min | 150 |
|
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
| Weft | ≥1000 | |
| Elongation @200N/5cm | Warp | <5 |
| Weft | <5 | |
|
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
| % | ≤1 | |
| Service Temperature(°C) | Continuous | 204 |
| Instant | 220 | |
| Finishing |
Singeing, calendaring, Water repellent, PTFE membrane |
|
Competitive Advantage:
1.High Temperature resistant
2.Resists flexing and abrasion
3.Effect of moisture
4.Good chemical resistance
5.Dimensional Stability
6.Flame resistance
OEM service, just let us know your request, we will give exact recommendation .
- What kind of product that showed on our website do you need?
- If you want buy filter cloth or felt and filter bag, tell me if you need any surface treatment.
- The size of dust filter bag.
- Flat Dimension.
- Specs on Material.
- Is it a Top or Bottom Load Collector?
- Your working conditions such as temperature resistance, chemical resistance.
