8 oz Needle Punch Woven Filter Fabric 4.5 oz 750gsm For Fiberglass Filter Bag
Price:
Negotiable
MOQ:
100 Square meter
Delivery Time:
10-15 Work Days
Brand:
HUADING
Product Description

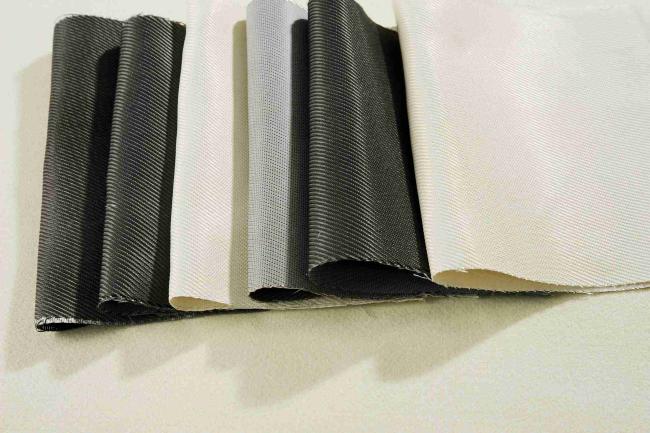

Woven Fiberglass Fiber Cloth For Fiberglass Filter Bag
Fiberglass woven cloth is loomstate or without treatment glass cloth. It is made of non-alkaline DE-grade fiberglass yarn by looms.
This kind of fiberglass cloth can not directly be used for sewing filter bag. It needs to do chemical treatment then can be used for sewing filter bag.
PRODUCT SPECIFICATION SHEETS
| Item |
Density (thread/cm) |
Weave Pattern |
Gram Weight (gsm) |
Tensile Strength (N/25mm) |
Air Permeability (cm3/cm2/s@127pa) |
|
| Warp | Weft | |||||
| HD-01 | 19×16 | Double Twill | 710±10 | ≥2500 | ≥2300 | 33-40 |
| HD-02 | 18×10 | 1/3 Twill | 460±10 | ≥2000 | ≥1000 | 30-35 |
| HD-03 | 21×12 | 1/3 Twill | 315±10 | ≥1400 | ≥1000 | 35-40 |
| HD-04 | 19×16 | Double Twill | 610±10 | ≥2300 | ≥2000 | 33-45 |
| HD-15 | 21×19 | 2/5 Satin | 550±10 | ≥2400 | ≥2400 | ≤60 |
