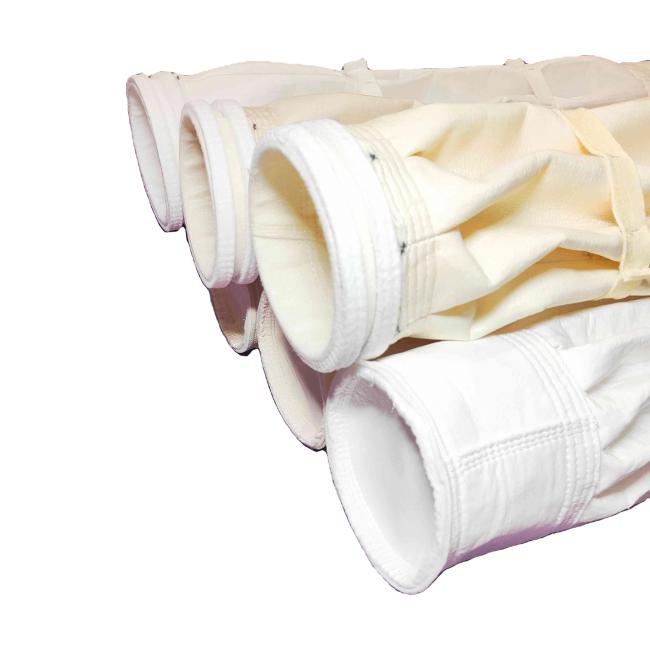

120mm Acrylic Pleated Filter Bag , Pulse Jet Filter Bags 12 Pleats

Price Negotiable

Price: Negotiable

MOQ: 50 Pieces

Delivery Time: 10-15 Work Days

Brand: HUADING

Product Description

Acrylic Star Filter Bag Acrylic Pleat Dust Collect Bag Extend Filter Area Bag 120mm Diameter Star Bag

Specification

Star filter bags (Star bags) is a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes.

The design of the pleated/star bag filter is suitable for dust collectors of various sizes and ensures easy installation and replacement. They are easy to install in various sizes of cell boards for top load dust collectors. Replace the traditional round filter bag used in many dust collectors.

Style	star bag, pleat bag, extend surface/area bag
Pleats No.	8 / 12 pleats
Material	Arcylic
Diameter	120		mm
Length	TBD		mm
Strap / band	Type	cut felt strap
	afixing	thread sewing to bag
	Width	25	mm
	Distance	250	mm
Top	Opening	120	mm
	Cuff	Type	seal cuff
		Width	10-12mm
		Thickness	8-10mm
		Distance	4-8mm
	Metal hoop	inside of top	yes
		material	304 stainless steel
		width	25-30mm
	Fix	sew to bag body
Boot / Bottom	Diameter	120	mm
	Height	100-120	mm
	Reinforcement	two layers
	Bottom disc	two layers
	Metal hoop	no, 20-25mm 304 stainless steel if yes
	Fix	sew to bag body
Seam	Type	thread sewing
	Bag panel/body	triple rows sewing
	Cuff panel	2 double rows sewing
	boot upper	2 double rows sewing
	boot bottom	double rows sewing
Pack	Poly bag and pallet, or carton and pallet

advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface	Dianmter mm	Bag Length
filter surface	Dianmter mm	1m	2m	3m	4m	5m	6m
8 pleats	120	38.64	55.97	61.75	64.64	66.37	67.52
12 pleats	120	70.91	92.28	99.40	102.96	105.10	106.52
