1KW Fiber CNC Laser Machine CWFL 1000 1500 1500x3000mm
Price:
14500-19000usd
MOQ:
1set
Delivery Time:
10-20 working days
Brand:
DWIN
Product Description
DW1530 fiber metal laser cutting machine cnc fiber laser machine
1. Adopt imported square guide rail ,double row slide block and the imported ball screw makes the machine working steady,high precision and long life time .
2. Low cost,laser power consumption only 0.5 to 1.5kw per hour,convenient operation,humanization design.
3. Imported original fiber laser(china made choice),high performance,stability and service lifespan over 100,000hours,free of maintenance.High speed,high efficiency,thin plate cutting can be over 10 meters per minute.

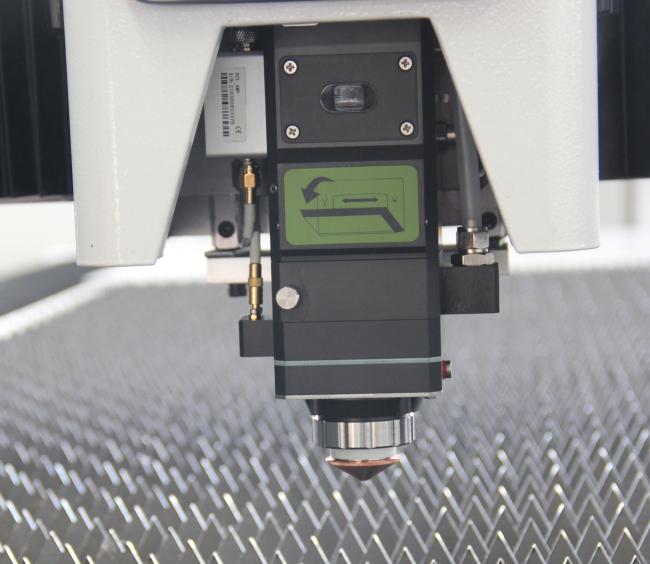

4.Automatic heigh sensor on laser head for uneven pieces.
5.Imported ball screw and linear guide rail driving system.
6. Machine cost low
Technical parameter:
| Model | Fiber-1530 |
| Working Area | 1500X3000mm |
| Laser Type | Raycus / Max |
| Laser Power | 1000w /1500w |
| Laser Wavelength | 1060 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.05mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Max Cutting Speed | 0-40m/min(depending on material and thickness) |
| Power Supply Rated Voltage | 3-phase 380V/50Hz |
| X-axis Stroke | 1500mm |
| Y-axis Stroke | 3000mm |
| Z-axis Stroke | 120mm |
| Working Table | Rack working platform |
| Control System | Cypcut CNC control system ( Fastcut 1000) |
| Location System | Red dot indicator |
| Water Cooling System | Constant temperature water chiller(CWFL-1000 ) |
| Machine Weight | 2500KG |
