Two layers groove welded 18M Long Reach Arm For Excavator 320D PC200 ZX200
Two layers groove welded 18M Long Reach Arm For Excavator 320D PC200 ZX200
Versatility and Flexibility: The extended boom enhances the versatility and flexibility of the excavator, making it suitable for a wide range of appliions. It allows the machine to perform tasks that would typically require specialized equipment or additional attachments. This versatility eliminates the need for multiple machines, saving both time and resources.
Improved Safety: Using an excavator with an extended boom can also contribute to improved safety on the job site. The longer reach allows the operator to maintain a safer distance from hazardous areas, unstable terrain, or potentially dangerous structures. This increased safety margin reduces the risk of accidents and ensures a safer working environment for the operator and other personnel.
Product advantage of long excavator boom and arm:
01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°
The specifiion of excavator boom stick
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
The excavator boom and stick long introduce
A long reach excavator is a type of excavator where the arm has been extended to reach farther than a normal excavator would. It is often used in demolition of buildings, but it can also be used in other appliions..

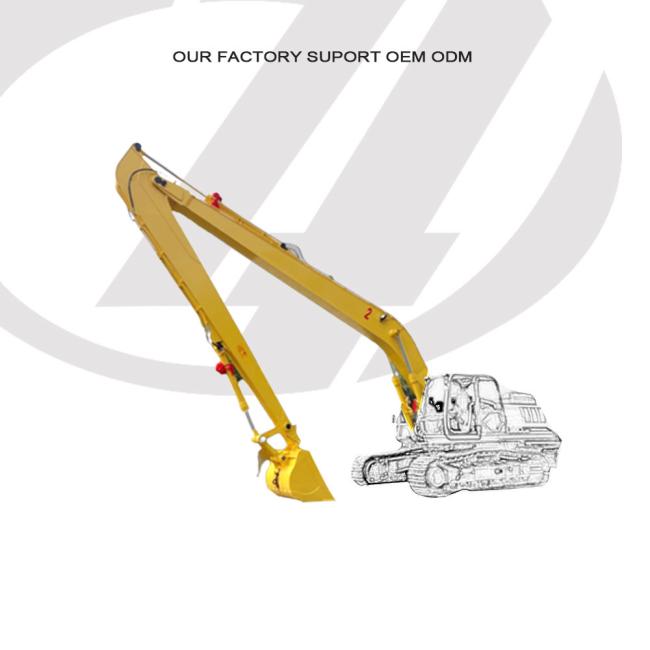

The pictures of excavator long arm for
