Factory Prompt Delivery Excavator High Reach Demolition Boom for ZX330 349 SY500
Factory Prompt Delivery Excavator High Reach Demolition Boom for ZX330 349 SY500
Click here to check out the product alog:Zhonghe Machinery Product alog-Contact Sales Manager Aria Directly
1. A 14000㎡ Workshop & Advanced Production Machines
2. 10+ Years Experienced High-tech R&D Team
3. Skillful Workers with 5+ Years Welding Experience
4. Professional Consultant for Custom-made
5. Quick Production Time within 7-20 Days
CE certifiion & Utility model patent certifies

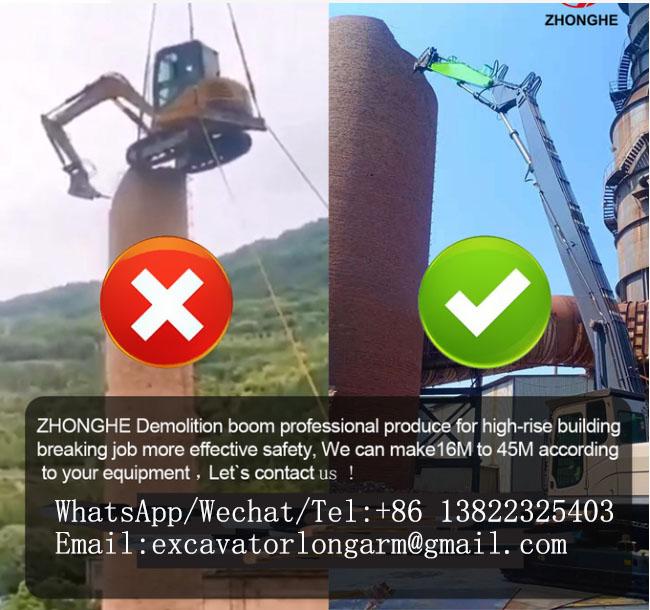

Compared with the excavator standard arm, the excavator demolition arm extends the upper and lower arms at the same time, but also adds a middle arm, which is specially designed to increase the safe distance between the cockpit and the working parts. Today, many countries consider explosive demolition to be dangerous and have tightened regulations. Especially between residential buildings can not apply for blasting demolition, therefore, the use of excavator demolition arm is a more simple and safe choice.
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubriing carbon powder inside).
6. Boom and sticks' angle can be opened to achive 180°
| Three-section Demolition Boom Accessories | |||
| name | Unit | mian material | warranty(day) |
| Boom | 1 | Q355B | 360 |
| Middle arm | 1 | Q355B | 360 |
| Arm | 1 | Q355B | 360 |
| Bucket | 1 | Q355B | 90 |
| 22 ton Bucket cylinder | 1 | — | 180 |
| Linkage assenbly | 1 | Q355B | 180 |
| Pin | 8 | 40Cr | 0 |
| High-pressure hose | 22 | 4 layers wire ring | 0 |
| Lubriion pipe | 5 | 1 layer wire ring | 0 |
| Shut-off valve | 10 | — | 0 |
The specifiion of excavator high reach arm demolition
| Excavator Ton | Total Length(mm) | (A)Transport Height(mm) | (B)Maximum Lifting Height(mm) | Limit weight of hydraulic shear(kg) | Cylinder(Ton) | Counterweight(Ton) |
| 25T | 16000 | 3160 | 14900 | 2000 | 20T | 4T |
| 30T | 18000 | 3300 | 17000 | 2000 | 20T | 4.5T |
| 35T | 20000 | 3300 | 19000 | 2000 | 20T | 4.5T |
| 40T | 22000 | 3400 | 21050 | 2000 | 20T | 5T |
| 45T | 24000 | 3400 | 23100 | 2000 | 20T | 5T |
Please feel free to contact Aria directly!
Click here to connect with Aria: Whatsapp/Wechat:+86 13822325403
Email:excavatorlongarm@gmail.com
