Excavator telescopic arm is a special working device installed on the excavator boom, which is used to flexibly extend its working radius and vertical deep digging range. Our 2-section telescopic boom extends and retracts the inner arm through the expansion of the oil cylinder.

The two-stage telescopic boom is generally 10-14 meters, generally match 12-30 tons excavator. It is divided into two designs with and without pipe coiler. On the market with pipe coiler design one is the main supply products


Zhonghe two-stage telescopic boom sales of more than 100 sets a year.

1.The built-in hose design avoids friction.
2.The sliding blocks can be replaced quickly.
3.Grease filling holes for centralized lubriion
4.A high quality standard bucket is in the plan.




(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced
3. The upgraded auxiliary rope design makes the pipeline smoother while stretching

(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder

(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration

(Easy to maintain)
Lubriion system for sliders help support butter easily.


1. 14000㎡ Workshop

2. High-tech R&D Team

3. More Than 60 Skillful Workers

4. Deep Customization(Color, length, bucket width, extra hydraulic pipeline...)

5. Prompt Lead Time(7-20 days)

6. Online support within 24 hours.





Q1. What is the length of the telescopic boom? Is it the total length of the boom?

A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.

Q2. How to judge the length of telescopic boom that can be made for different models?

A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.

Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?

A3. The original machine needs three sets of pipes. The telescopic function of the telescopic arm is controlled by the original breaker pipe. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.

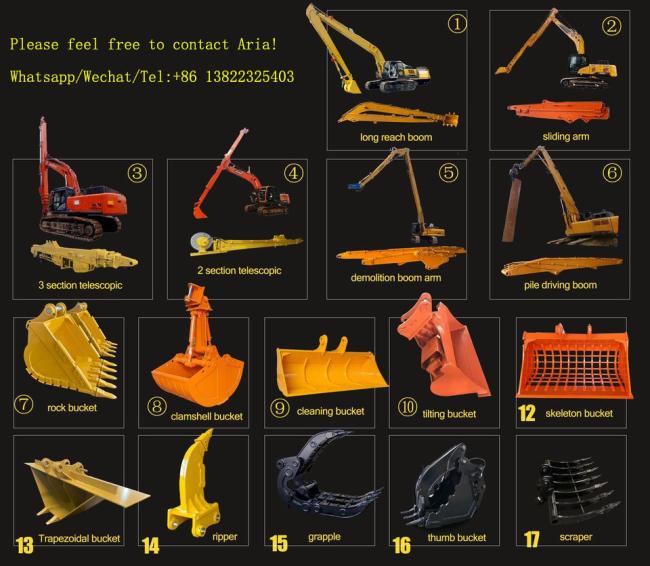

1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators

7. telescopic boom arm

8. clamshell telescopic arm

9. telescopic boom excavator

10. telescopic boom

11. FOR EXCAV

12. sliding boom

13. EXCAV PART

​

Please feel free to contact Aria directly!
