315 Sturdy Excavator Telescopic Boom 25m Long Reach Heavy Duty

Price Negotiable

Price: $11800/Pieces

MOQ: 1set

Delivery Time: 15works

Brand: ZH

Product Description

High quality 315 25meters long reach excavator telescopic boom manufaturer

Our telescopic arm have 3 advantage

01 design advantage , there are four sliding wheels on the front,Two sliding wheels on the top , the others two on the bottom , this part separate the high pressure hose and the steel rope , to reduce grinding each other ,less grinding can prolong the service life .

02 The part advantage, the vice rope diameter is 26 millimeter , the main rope is more stronger , you can see is 30 millimeter.the sliding block, it is nylon material , it can reduce grinding,Our sliding wheel is POM Material , with high mechanical strength and rigidity

03 easy to maintain

Description
The world's safest & technologically advanced telescopic clamshell delivering inexhaustible extraction rates others can only dream of. The Zhonghe Extractor Telescopic Clamshell boosts productivity & exhibits the best performance in bulk load out of deep excavating work.

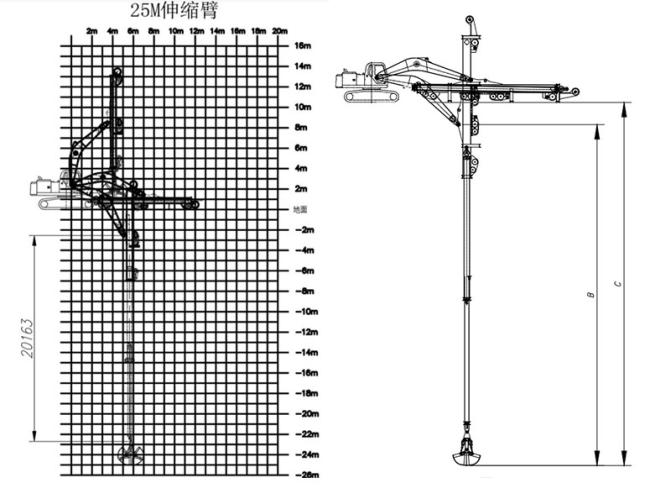

Simulation parameter diagram

Excavator Ton	(A)Maximum working Length of arm	(B)Maximum digging height	Shell bucket volume(cbm)
6-10T	7600	10000	0.2-0.3
11-15T	10500	14000	0.4-0.6
20-27T	12500	16000	0.8-1.5
30-35T	15500	20000	1.3-1.6
30-35T	20500	25000	1.0-1.4
40-45T	20500	25000	1.8-205
40-45T	25100	30000	1.4-2.0
