OEM ODM 20-50ton 320 ZX490 16M 18M Excavator Long Arm For Long Digging
OEM ODM Long Reach Boom 20-50ton for 320 ZX490 ,16M18M Excavator Long Arm for long digging

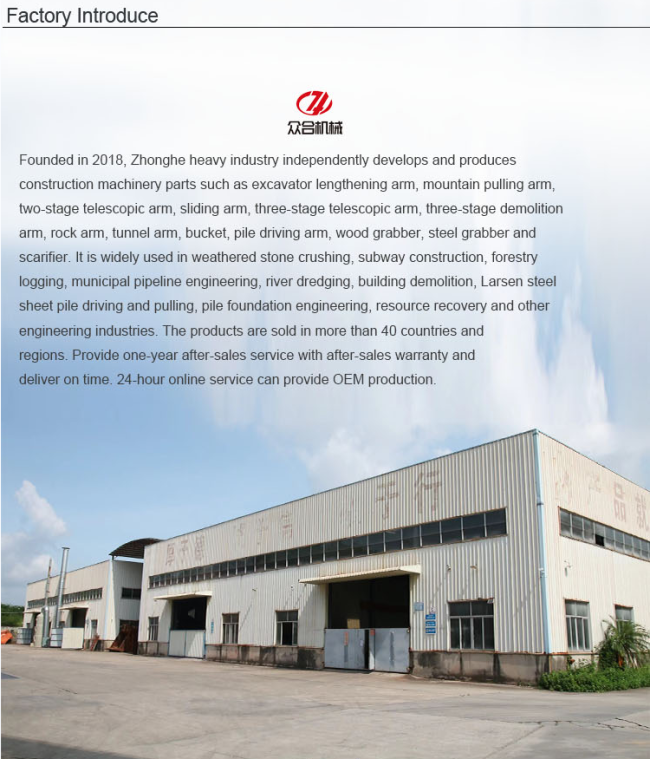

1. 14000㎡ precision equipment plant
With more than 14000 square meters of steel structure standard plant, with a large number of high-precision processing equipment.
2. High-tech R&D team
We use precision mapping software to achieve the maximum range of work while operating safely.
3. Experienced workers
There are more than 60 skilled employees, 30 welding workers with more than 5 years of welding experience.
Step 4 Customize
(1) Matching all brands of excavators.
(2) The color, length and material can be made according to you.
(3) Additional pipes can be added to accommodate some additional appliions.
5. Timely delivery
(1) Our delivery time is 7-15 days.
(2) Annual output of various kinds of excavator arm sets 600.
6. Excellent service
,
(1) 24-hour online service.
(2) Technical video support can be reserved.
Our chief engineer has over 10 years of experience in customizing various excavator arms.
Excavator long arm, excavator sliding arm, excavator telescopic arm, demolition arm is our first choice, as well as excavator pile arm, excavator tunnel arm, excavator standard arm, excavator grab arm.
In addition, we have customized more than 100 sets of heavy-duty long excavator arms for high-power excavators (grab or floating platforms), such as EX2500, EX1200, EX1900, SY980.
As a result, we are one of the most experienced heavy excavator arm manufacturers in China
1. Our R&D team designs and produces simulations using sophistied software.
2. Our workers do a good job in the production process
3. Our quality control room is strict and accurate, and the qualified rate of products reaches 99.5%.
First, core technology
1. Less maintenance
High quality materials such as default Q355B, optional Q690D, Niningbo connector, seamless precision piping, graphite alloy copper sleeve, strong and lightweight bucket cylinder.
2. Strong and sturdy
Built-in stiffener. Professional welding skills for different bearing positions. Groove preparation before welding (45° edge excavation).
Second, core design technology
1. Tolerance within 5-10um
Drilling tolerance within 5-10um to ensure accuracy.
2. Reach deeper and higher
Maximum working range and maximum digging height are greater, as the boom and forearm Angle can reach 163 degrees.
3. High working efficiency and fuel saving
While taking into account the quality of lighters, not only to ensure the work efficiency and save fuel.
| Excavator (ton) | Total Length(mm) | (A)Boom (mm) |
(B)Arm (mm) |
Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 11800 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
6. Hydraulic grabs for excavators
CE certifiion & Utility model patent certifies
Q1: Why is there no boom and bucket rod cylinder in the scheme?
A1: First, the entire long arm is lengthened, but the boom is lengthened only from the middle sleeve to the end, so the original boom and bucket rod cylinder can be used. Secondly, using the original parts can save you costs.
Q2: How long can a small excavator be equipped with a boom? Do you need to increase the counterweight?
A2. Generally speaking, the longest arm of 30-40 excavators is recommended to be 8 meters long, and 0.1cbm bucket can be configured without additional weight. It is recommended that the longest arm length of the excavator be 12 meters, the bucket of 0.1-0.15 cubic meters can be configured, and the weight should be 0.5 tons. It is recommended that the longest arm length of the 60-80 excavator be 12 meters, the bucket of 0.15 to 0.25 cubic meters can be configured, and the weight should be 0.5-0.7 tons.
It is not recommended to extend the boom to its maximum length because small excavators are prone to shaking.
Q3: How long does it take to install the long arm of the excavator?
This depends on the installer and machine size.
Usually disconnect the original boom, glue the cylinder, and then fix the new one.
Please remind me to prepare several containers for oil before disassembly.
