40TPH Ultrafiltration Water Treatment Equipment Water Purification System

Ultrafiltration Water Treatment System are often used to:

(1) Desalination and concentration of macromolecular substances, and exchange equilibrium of solvent system of macromolecular substances.

(2) Fractional separation of macromolecules.

(3) pyrogenation of biochemical agents or other agents.

Ultrafiltration technology has become an indispensable and powerful tool in pharmaceutical industry, food industry, electronic industry and environmental protection.

The Characteristics of Ultrafiltration Water Treatment System

The operation is simple, the cost is low, do not need to increase any chemical reagents, especially the experimental conditions of ultrafiltration technology is mild, compared with evaporation, freeze drying, no phase change, and does not cause temperature, pH change, so it can prevent the degeneration, inactivation and autolysis of biological macromolecules. In the preparation of biological macromolecules, ultrafiltration is mainly used for desalination, dehydration and concentration of biological macromolecules. Ultrafiltration method also has some limitations, it can not directly obtain dry powder preparation. For protein solutions, concentrations of 10 to 50% are generally obtained.

Technical specifications of Ultrafiltration Water Treatment System

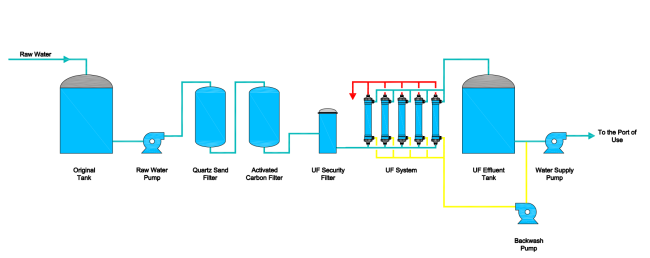

Workflow of Ultrafiltration Water Treatment System

Raw liquid - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - storage tank - backwash tank - backwash pump.

What is the definition of Ultrafiltration Water Treatment System

Ultrafiltration is a hollow fiber filtration technology, with three stage pretreatment filtration to remove impurities in tap water; Ultrafiltration micropores less than 0.01 micron, can thoroughly filter bacteria, rust, colloid and other harmful substances in the water, retain the original trace elements and minerals in the water.

Principle of Ultrafiltration Water Treatment System

Ultrafiltration is a pressurized membrane separation technology, that is, under a certain pressure, the small molecule solute and solvent through a certain aperture of the special film, and the large molecule solute can not pass through, stay at the side of the membrane, so that the large molecule material has been partially purified. Ultrafiltration principle is also a membrane separation process principle, ultrafiltration uses a pressure active membrane, under the action of external driving force (pressure) to intercept colloids in water, particles and relatively high molecular weight substances, and water and small solute particles through the membrane separation process.

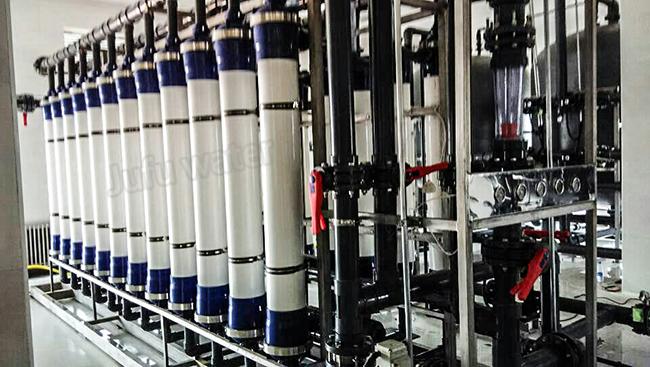

Photos of Ultrafiltration Water Treatment System

FAQ:

1. What is the material of ultrafiltration membrane?

Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)

2. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

3. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type
