RO Water Treatment Plant Purified Water Machine for Pharmaceutical

RO Water Treatment System Introduction:

The desalination rate of reverse osmosis equipment is high, and the desalination rate of single membrane can reach 99%. Reverse osmosis water treatment system runs stably, desalting rate and recovery rate are high. Simple operation, small maintenance workload, compact structure, saving installation space. High efficiency and low energy consumption, no secondary pollution, low operating cost, the application of membrane separation technology, removal of charged ions, inorganic matter, colloidal particles, bacteria and organic matter in water.

Components and Principles of RO Water Treatment System

The reverse osmosis system includes high pressure pump, reverse osmosis membrane element, pressure vessel (membrane shell), cleaning system and control instrument; the principle of reverse osmosis water treatment system is: when a pressure greater than osmotic pressure is applied on the brine side of the membrane, the water The direction of flow will be reversed, and the water in the brine will flow into the fresh water side, a phenomenon called reverse osmosis.

Technical Specifications of RO Water Treatment System

Application fields of RO Water Treatment System

1. Water for food and beverage industries
Beverages, dairy, brewing, preparation water, low-level blending water, pure draft beer filtration
2. Bottled and bottled drinking water
Drinking pure water, natural water, mineral water, mineralized water
3. Family and group water purification equipment
High-quality water supply network systems and swimming pool water purification equipment for buildings, communities, hotels, airports, real estate properties

Process flow of RO Water Treatment System

Original water pump → mechanical filter (quartz sand filter)→ activated carbon filter → sodium ion exchanger (water softener)→ security filter → high pressure pump → reverse osmosis → ozone sterilizer (ultraviolet sterilizer)

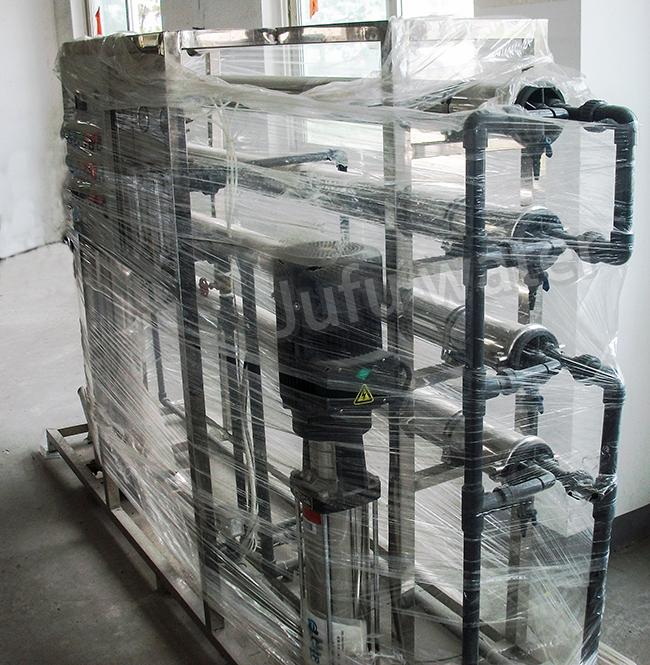

Photos and details of RO Water Treatment System

Stainless steel membrane shell of RO Water Treatment System

FRP membrane shell for RO Water Treatment System

FAQ:

1. What is the shell film material and specification of ro water treatment system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

Water inlet: end water inlet, side water inlet

2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

3. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass
