RO Water Treatment System Ultra Pure Water Plant for Pharmaceutical

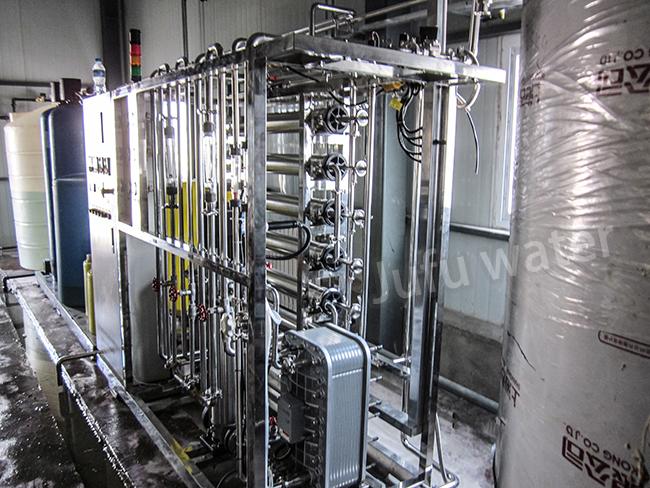

What's Two-stage Pure RO System?

The two-stage reverse osmosis equipment is also called second-stage reverse osmosis. The raw water is pressurized and sent to the pretreatment system for coarse filtration. After entering the precision filter, it is filtered and sent to the first-stage reverse osmosis system through the first-stage high-pressure pump. The water is then sent to the secondary reverse osmosis system by a secondary high pressure pump to produce product water, called two-stage reverse osmosis.

Product Technical Specifications

Pharmaceutical Industry Water Treatment Equipment Process

Groundwater→submersible pump→aeration device and sedimentation tank→water storage tank→booster pump→iron-manganese filter→mechanical filter (multi-media filter/quartz sand filter)→activated carbon filter→softening filter Medicine system→PH adjustment system→precision filter (security filter)→first-stage reverse osmosis main pump high-pressure pump→first-stage reverse osmosis unit→second stage reverse osmosis system high-pressure pump→secondary reverse osmosis unit→0.22U precision filter→ Pure water tank

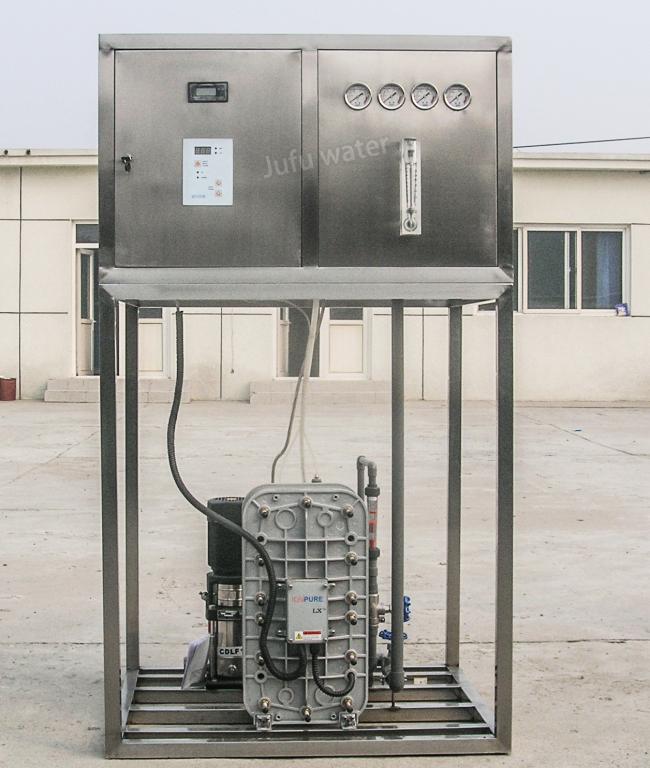

RO & EDI

RO(Reverse Osmosis), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.

EDI (Electrodeionization) is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.

Why Use Reverse Osmosis Equipment in the Pharmaceutical Industry?

The quality of water determines the quality of medicines, so water is the key to making medicines. Reverse osmosis equipment is currently the best equipment for water treatment, and it is also the most advanced equipment in the field of water treatment today. Therefore, reverse osmosis equipment is indispensable in the field of medicine.
Reverse osmosis equipment is a method of selectively removing various bacterial viruses and salts using high-tech membranes under high pressure. The water treated by reverse osmosis equipment is impeccable, mainly from the layer filtration treatment of water. At the same time, the equipment is highly intelligent and the water quality is excellent. Therefore, the application of reverse osmosis equipment is very extensive and indispensable, not only in the pharmaceutical industry.

Application
