Excavator ZX200 ZX210 ZXZ30 ZX240 Final Drive Travel Motor 9170996 ZX200-1 9195447 9213445 9213322
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
5 work days
Brand:
BETTERPARTS
Product Description

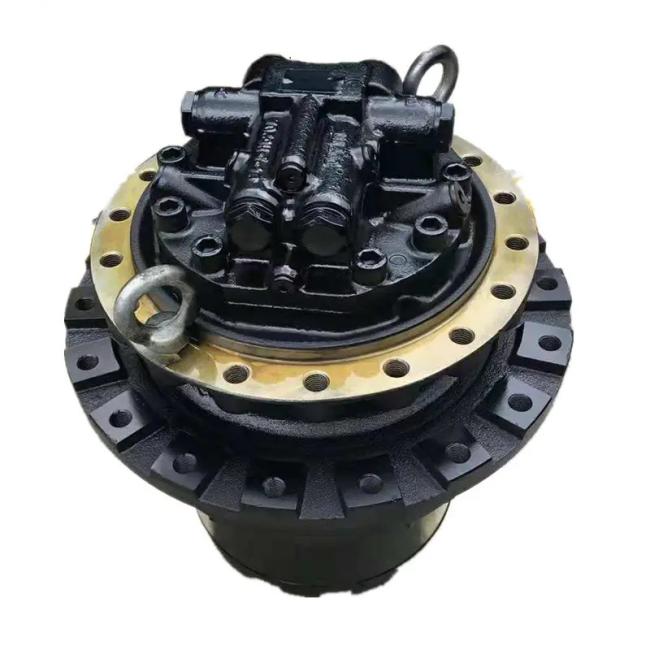

Hitachi Excavator 4448321 ZX200-6 ZX200-1 ZX210 ZX200 Travel Motor Assy ZX200 Final Drive
|
Product Parameter
|
|
|
Product name
|
Excavator travel motor
|
|
Model
|
ZX200-6 ZX200-1 ZX210 ZX200 |
|
Quality
|
100% Professional Test
|
|
Condition
|
new
|
|
Packing
|
Standar packing
|
|
Material
|
Steel
|
|
MOQ
|
1 pcs
|
|
Delivery
|
Within 3days after received payment
|
|
Place of Origin
|
Ghuangzhou,China
|
|
Warranty
|
6 months
|
|
Specific Use
|
Make the excavator have stronger axial force and radial force when working.
|
|
Product Description
|
Provide strong power for the operation of the excavator.
|
|
Scope of appliion
|
Various brands of excavators
|
|
After service
|
Online support
|
Final Driving Installation Precautions:
Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved.
Check for leakage from all motor parts.Ensure the system is operating within the specified working temperature.
Check the pressure is operating within specified range.
Diagnosis & Maintenance
• If motor is running with an unusual sound, unscrew the plug from the drain and check whether the oil level is present. add
the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities,
need replace the oil and keep it clean. to keep the life of the Track Drive Motor.
• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not
the motor is breakdown.
the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities,
need replace the oil and keep it clean. to keep the life of the Track Drive Motor.
• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not
the motor is breakdown.
|
#
|
Part No
|
Part Name
|
Qty.
|
|
|
|
9191194
|
TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE)
|
2
|
|
|
|
9199841
|
TRAVEL DEVICE (FOR TRANSPORTATION)
|
2
|
|
|
00
|
9190295
|
MOTOR; OIL (FOR ASSEMBLY OF MACHINE)
|
1
|
|
|
00
|
9200288
|
MOTOR; OIL (FOR TRANSPORTATION)
|
1
|
|
|
02
|
4114753
|
EAL; GROUP
|
1
|
|
|
03
|
4246793
|
*BRG.; ROL.
|
2
|
|
|
04
|
1027152
|
*DRUM
|
1
|
|
|
05
|
1010203
|
*SPROCKET
|
1
|
|
|
06
|
J932055
|
*BOLT
|
16
|
|
|
07
|
A590920
|
*WASHER; SPRING
|
16
|
|
|
08
|
3086531
|
*NUT
|
1
|
|
|
11
|
4436242
|
*PIN; KNOCK
|
1
|
|
|
12
|
1026779
|
*CARRIER
|
1
|
|
|
13
|
3085966
|
*GEAR; PLANETARY
|
3
|
|
|
14
|
4445531
|
*BRG.; NEEDLE
|
6
|
|
|
15
|
4284521
|
*PLATE; THRUST
|
6
|
|
|
16
|
4139975
|
*PIN
|
3
|
|
|
17
|
4116309
|
*PIN; SPRING
|
3
|
|
|
18
|
3085927
|
*GEAR; SUN
|
1
|
|
|
20
|
1027158
|
*GEAR; RING
|
1
|
|
|
21
|
J931640
|
*BOLT
|
28
|
|
|
23
|
1027161
|
*CARRIER
|
1
|
|
|
24
|
4401293
|
*SPACER
|
2
|
|
|
25
|
3085985
|
*GEAR; PLANETARY
|
3
|
|
|
26
|
4445529
|
*BRG.; NEEDLE
|
3
|
|
|
27
|
4210851
|
*PLATE; THRUST
|
6
|
|
|
28
|
4309995
|
*
|
3
|
|
|
29
|
4246358
|
*PIN; SPRING
|
3
|
|
|
30
|
3085941
|
*GEAR; SUN
|
1
|
|
|
32
|
1027160
|
*CARRIER
|
1
|
|
|
33
|
3086006
|
*GEAR; PLANETARY
|
3
|
|
|
34
|
4406589
|
*BRG.; NEEDLE
|
3
|
|
|
35
|
4192910
|
*PLATE; THRUST
|
6
|
|
|
36
|
4210853
|
*PIN
|
3
|
|
|
37
|
4173093
|
*PIN; SPRING
|
3
|
|
|
38
|
2043851
|
*SHAFT; PROP
|
1
|
|
|
40
|
2043868
|
*COVER
|
1
|
|
|
41
|
4285323
|
*PIN; STOPPER
|
1
|
|
|
42
|
J011230
|
*BOLT; SEMS
|
12
|
|
|
43
|
4245797
|
*PLUG
|
3
|
|
|
46
|
3053559
|
*NAME-PLATE
|
1
|
|
|
47
|
M492564
|
*SCREW; DRIVE
|
2
|
|
|
43
|
4245797
|
. PLUG
|
3
|
|
|
46
|
3053559
|
. NAME-PLATE
|
1
|
|
|
47
|
M492564
|
. SCREW; DRIVE
|
2
|
