3935k Epoxy Coated NTC Probe Sensor 2.252K Plastic Housing Type
3935k Epoxy Coated NTC Probe Sensor 2.252K Plastic Housing Type
Brief Introduction:
MF5A-7 plastic housing type NTC thermistor, manufactured by Hefei Jingpu Sensor Technology Co., Ltd, consists of an NTC chip, HDPE/PP/PVC housing, and insulated wire (FEP/PVC/PVDF wire). The optional resistance value range is from 0.3kΩ to 2000kΩ, and the B value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
High precision to ±0.1℃ from the temperature 25℃ to 45℃
Application:
Human body temperature measurement
Medical electric equipment
Skin / coelom / body temperature measurement
Adult/pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, health monitor

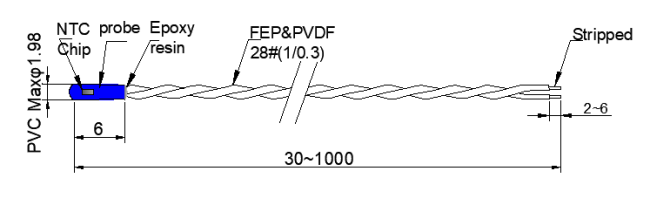

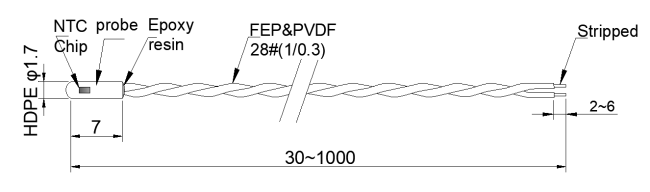

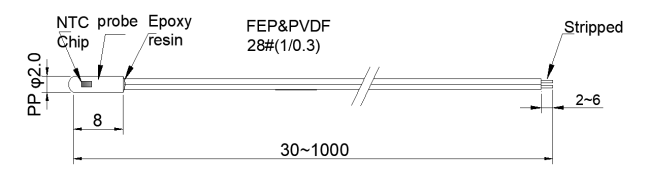

Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Probe | Epoxy resin | 1 | / |
| 3 | Wire | FEP&PVDF28#(1/0.3) stripped wire | 1 | / |
Standard packing (inner packing): 100~500pcs/polybag
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃( wire) | 30~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
