China PC Multicolor Anderson Power Pole Connector Kit Stable Multiscene for sale

PC Multicolor Anderson Power Pole Connector Kit Stable Multiscene

Price Negotiable

Price: negotiated

MOQ: 100pieces

Delivery Time: 7-10 working days after receive payment

Brand: Hexie

Product Description

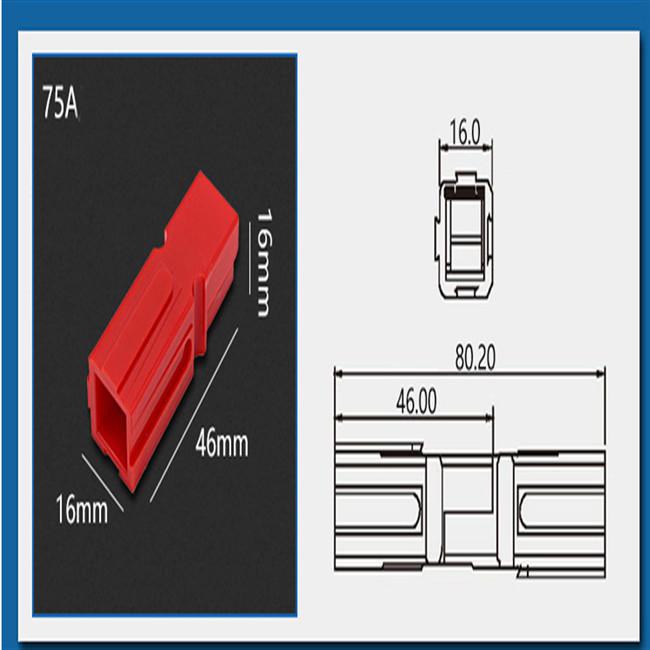

75A Single Pole Anderson Powerpole Connectors with Copper Contact For Car Battery Solar Caravan Boat Connector

Rated current: 75A
Color: Black/Red/Yellow/Blue
Wire Diameter : Various American Standard Wire Diameters
Interface type: AC or DC
Rated voltage: 600V
Working Temperature:-25℃-105 ℃
Shell material: PC UL94V0

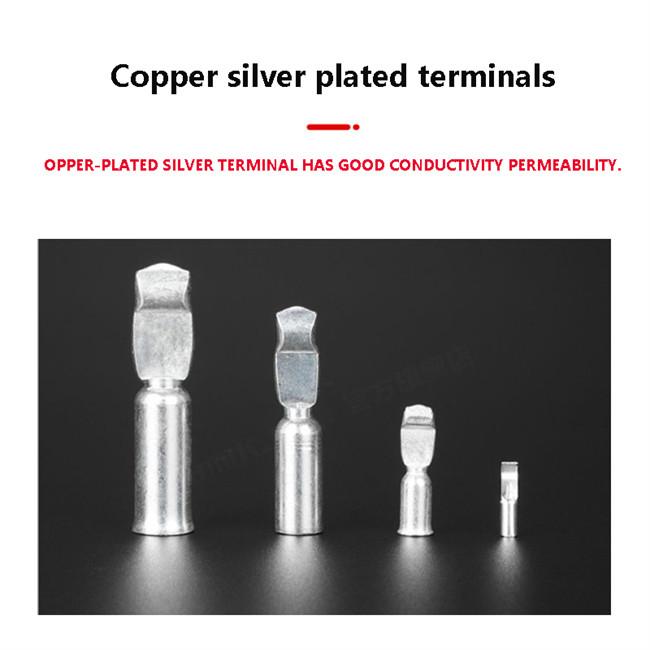

Terminals material: Silver-plated Copper

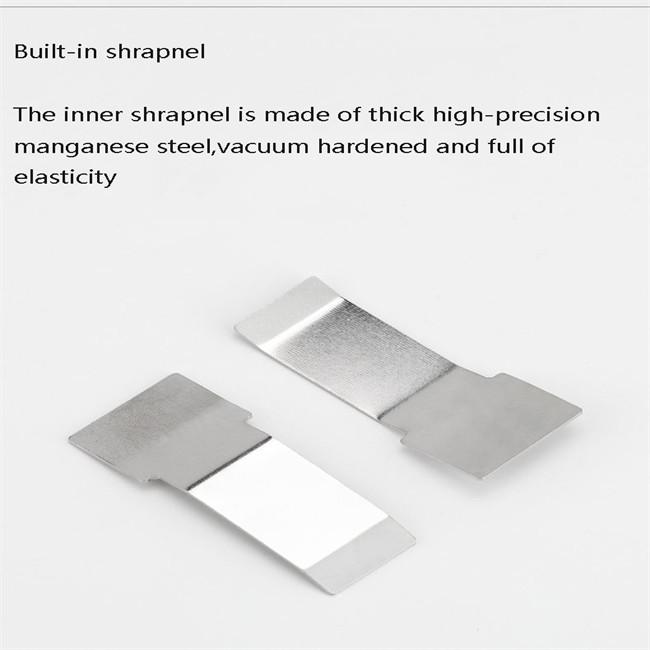

Shrapnel material: 65Mn Steel

item	value
Place of Origin	China
	Guangdong
Brand Name	Hexie
Model Number	75A
Type	Adapter
Application	Electric vehicles
Product name	Anderson connector
Rated Current	30A 45A 75A 120A 180A
Rated Voltage	600V
Shell	PC
terminal	Copper silver plating
Color	Red gray blue yellow green
Fire rating	VL94 V-0
temperature	-20°~105°
Insulation Withstanding Voltage:	2200V AC/DC

Rated current (A)	Rated voltage (V)	Terminal maternal	Plastic shell material	Internal shrapnel	Environment temperature(℃)	Connector specification(AWG)	Connector specification (mm²)
30	600V	Silver-plated Copper	UL94 V-0	65Mn	-20℃~105℃	10-12 AWG	2.5-4 mm²


75						12-6AWG	4-16 mm²

120						6-2AWG	10-25 mm²


180						6-1/0 AWG	10-50 mm²
