China UL3135 Battery Silicone Flexible Cable , Anti Corrosion 12 AWG Black Wire for sale

UL3135 Battery Silicone Flexible Cable , Anti Corrosion 12 AWG Black Wire

Name: UL3135 Battery Silicone Flexible Cable , Anti Corrosion 12 AWG Black Wire
Brand: Dongguan Hexie New Energy Technology Co., Ltd.

Price Negotiable

Price: USD0.05-0.35 per Meter

MOQ: 305 Meter

Delivery Time: 3- 5 work days

Brand: Hexie

Product Description

Flexible Silicone Cable UL3135 12AWG Electric Wire for New Energy Battery Wire Harness

Product Description

Place of Origin : China
Brand Name : Hexie
Model Number : UL3135 12AWG

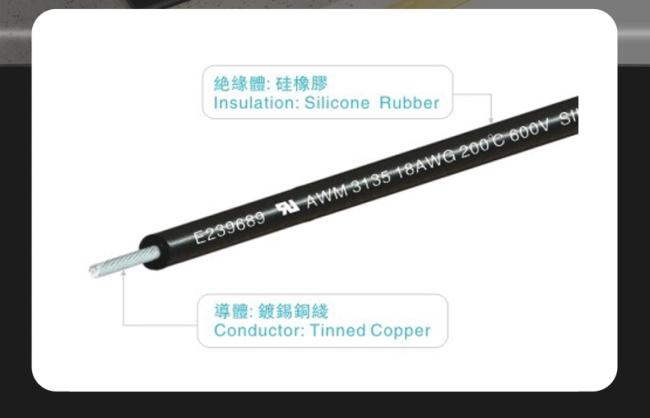

Insulation Material : Silicone Rubber
Type : High Voltage
Application : Home Appliance, Lighting, Heater, Motor & Generator,
Conductor Material : Tinned copper
Jacket : Silicone Rubber, Silicone Jacket
Product name : Copper Core silicone Insulation Wire
Color : Red Black Blue Green Yellow Orange or Customized Color
Conductor : Tinned Copper
Insulation : Silicone Insulation Cable
Material : Silicone Copper
Rated Voltage : 600V
MOQ : 305M/Roll

Conductor			Insulation		Max.Conductor Resistance	Unit length
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	(Ω/KM)	(M)(Ft)
26	7/0.16	0.48	0.78	2.04	143	305/1000
24	7/0.20	0.61	0.78	2.17	89.3	305/1000
22	7/0.254	0.77	0.78	2.33	56.4	305/1000
20	7/0.31	0.94	0.78	2.5	35.2	305/1000
18	7/0.39	1.19	0.78	2.75	22.2	305/1000
16	7/0.49	1.49	0.78	3.05	14	305/1000
24	11/0.16	0.61	0.78	2.17	89.3	305/1000
22	17/0.16	0.76	0.78	2.32	56.4	305/1000
20	26/0.16	0.94	0.78	2.5	35.2	305/1000
18	41/0.16	1.18	0.78	2.74	22.2	305/1000
16	26/0.254	1.49	0.78	3.05	14	305/1000
14	41/0.254	1.87	0.78	3.43	8.78	305/1000
12	19/0.47	2.63	0.78	3.92	5.53	305/1000
0.30mm²	12/0.18	0.71	0.78	2.27	59.78	305/1000
0.50mm²	20/0.18	0.92	0.78	2.48	40.1	305/1000
0.75mm²	30/0.18	1.13	0.78	2.69	26.7	305/1000
1.00mm²	40/0.18	1.31	0.78	2.87	20	305/1000
1.25mm²	50/0.18	1.46	0.78	3.02	14.35	305/1000
2.00mm²	41/0.254	1.87	0.78	3.43	8.78	305/1000
2.50mm²	50/0.254	2.08	0.78	3.64	7.16	305/1000
