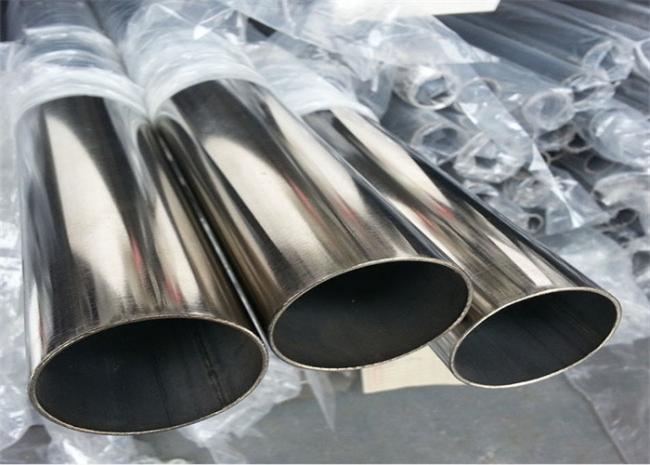

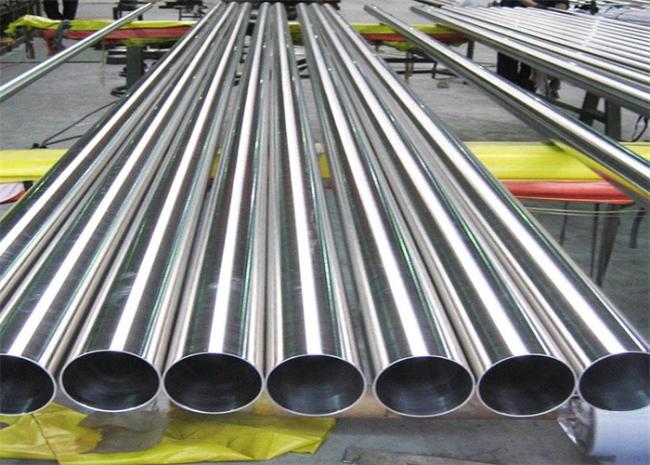

304L 2507 25mm Stainless Steel Tube 2B Surface 0.8mm-20mm Thick
ASTM Seamless 2507 Stainless Steel Pipe Tube 2B 310S 304 304L
| Material | 310S 304 304L Stainless Steel |
| Shape | Round / Square |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 16mm - 2000mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Length | 6 Meters - 18.3 Meters ; As customers' request ; |
| Tolerance | According to the Standard , +/-10% Commonly ; |
| Surface Treatment | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
| Application | Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
| Test | Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001 ; ISO14001; ISO 18001; TUV ; |
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Products dimension toerance:
| Dimension Tolerance Table | ||||
| Standard | Outside diameter(mm) | Thickness(mm) | Length(mm) | |
| ASTM A312 | ≤48.26 | +0.40 -0.80 | +unspecified -12.50% | Definite cut lenght +6.40 -0 |
| >48.26~114.30 | +0.80 -0.80 | |||
| >114.30~219.08 | +1.60 -0.80 | |||
| >219.08~457.20 | +2.40 -0.80 | |||
| >457~660 | +3.20/ -0.80 | |||
| >660~864 | +4.00/ -0.80 | |||
| >864~1219 | +4.48/ -0.80 | |||
| EN 10217-7 | D1±1.50% with ±0.75mm(min) D2±1.00% with ±0.50mm(min) D3±1.75% with ±0.30mm(min) D4±0.50% with ±0.10mm(min) EN ISO 1127 |
T1±15.00% with ±0.60mm(min) T2±12.5% with ±0.40mm(min) T3±10.00% with ±0.20mm(min) T4±7.50% with ±0.15mm(min) T5±5.00% with ±0.10mm(min) EN ISO 1127 |
≤6000: +5.00 -0 6000~12000: +10.00 -0 |
|
Our Advantages:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation in every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
Q:What is stainless steel pipe used for?
Stainless steel pipe is primarily used in piping systems for the transport of fluids or gases.
We manufacture steel pipe from a steel alloy containing nickel as well as chromium,
which give stainless steel its corrosion-resistant properties.
Q:Is stainless steel pipe cheaper than copper?
Copper is often more expensive than that of stainless steel.
This may sometimes change based on the current market value,
but you should expect to pay on avergage about 25% more for copper.
Maintenace of copper is a bit more time consuming if you want to maintain its finish.
Q:Can stainless steel pipe be used for potable water?
Stainless Steel Pipes
Stainless steel is corrosion resistant. They are ductile, can handle high flow rates, and are not hard to bend and cut.
More importantly, the biochemical structure of stainless steel offers the best hygiene,
making it a better choice for drinking water.
Q:What grade of stainless steel will not rust?
304 stainless steel is the most common form of stainless steel used around the world due to excellent corrosion resistance and value.
304 can withstand corrosion from most oxidizing acids.
Q:What is the strongest grade stainless steel?
440C stainless steel
Martensitic grades include 420 stainless steel,
which is used in engineering applications like shafts and 440C stainless steel – the hardest
and most abrasion resistant of all the stainless steel.
