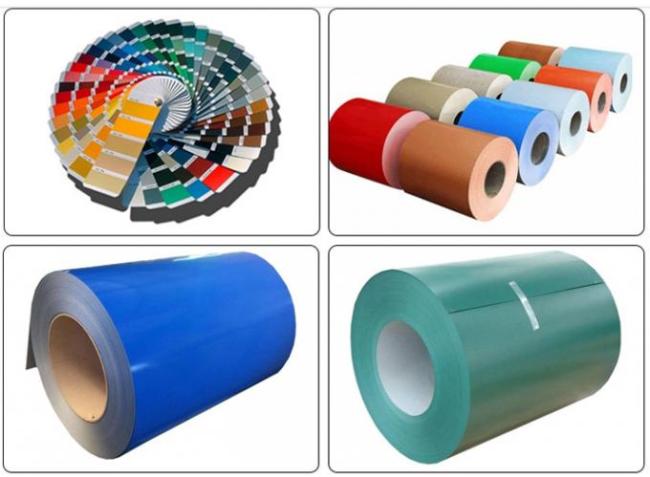

0.12mm-4mm PPGI PPGL Colour Coated Sheet Coil SGCC SGCD SGHC
Color steel plate refers to the organic coating or plastic film on the continuous production line coating or pressing on the surface of galvanized plate, cold-rolled plate or aluminum plate, forming a new type of metallurgical products.Color steel plate refers to the organic coating or plastic film on the continuous production line coating or pressing on the surface of galvanized
plate, cold-rolled plate or aluminum plate, forming a new type of metallurgical products.
Thickness | 0.12mm-2.5mm |
Width | 750mm-1250mm |
Steel Grade | SGCC/SGCH/CS Type A and B/DX51D/DX52D/G550/S280/S350 ETC |
Base Steel Coating Thickness | Gazlvanized coating thickness Z30-Z275g; Galvalume coating thickness AZ30-275g. |
Color | RAL color, Wooden color,Military color,Matt, Winkled, ECT. |
Painting Coating | Top coating:5-30UM; Back coating :5-15UM |
Coating Types | Top Paint: PVDF, HDP, SMP, PE, PU; Back Paint: Epoxy, Modified Polyester. |
Surface Treatment | Passivation or Chromated, Skin Pass,Oil or Unoiled,or Antifinger print |
Coil Wieght | 3-5 tons |
Package of wrinkle ppgi / Diamond embossed PPGI / chequered ppgi sheet in coil
Standard packing to export:
1) 4 eye bands and 4 circumferential bands in steel
2) Galvanized metal fluted rings on inner and outer edges
3) Galvanized metal & waterproof paper wall protection disk
4) Galvanized metal & waterproof paper around circumference
PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.
Q:What is difference between PPGL and PPGI?
PPGI means pre-painted galvanized steel while PPGL describes pre-painted galvalume steel.
Q:What is PPGL material?
PPGL stands for pre-painted galvalume steel, which is a kind of color-coated steel with GL as substrate. It combines the strength of steel with excellent anti-corrosion of Zn-Al coating. The galvalume coating is made of 55% aluminum, 43.4% zinc, and 1.6% silicon.
