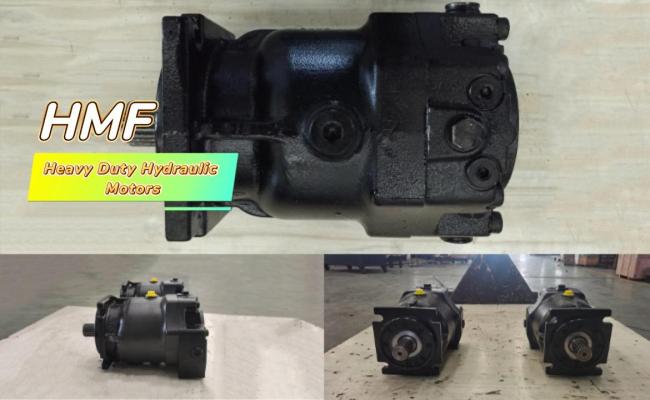

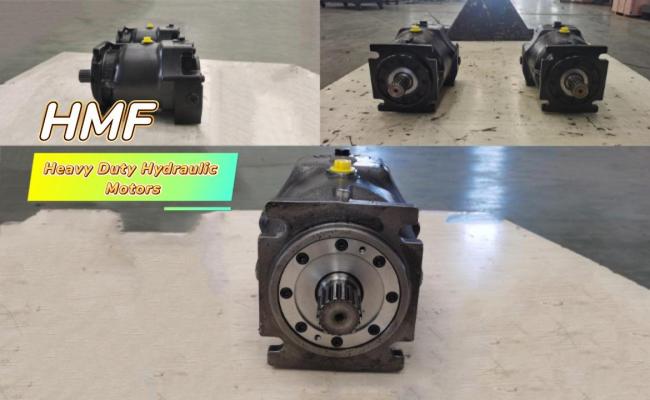

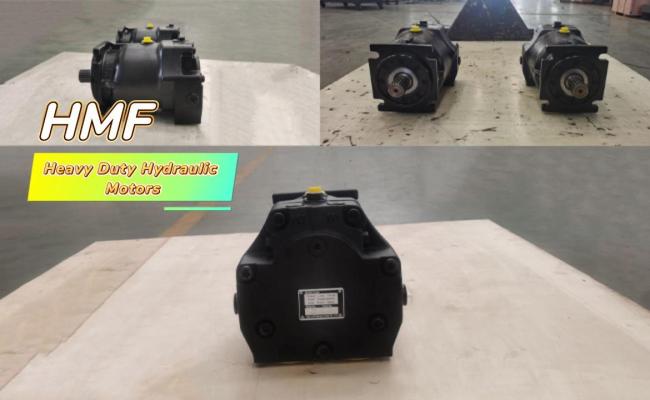

HMF70 Heavy Duty Hydraulic Motors For Mobile Crushers With Cast Iron Housing

Price Negotiable
Price: Negotiable
MOQ: 5 sets
Delivery Time: 10 working days
Brand: HIGHLAND
Product Description

Highland HMF70 Maximizing Efficiency: The Role of Heavy Duty Hydraulic Motors in Heavy Machinery



Quick Detail:



·Cast iron housing

·Hydraulic components

·Model HMF70

·Hydraulic system power components

·Principle hydraulic transmission

·Features easy maintenance

·Simple layout

·System Solutions

·Work fast

·Fully replace imported products

·Patent certificate certification

·Application mobile crusher heavy duty hydraulic motors

·1 year warranty

Description:



Highland Heavy duty hydraulic motors features:



Introducing our wholesale range of Highland Heavy-duty Hydraulic Motors, meticulously designed for Agricultural Machinery. Highland hydraulic motors are crafted to endure and excel in the rigorous environment of farming and crop production. Their improved performance, efficiency, and durability guarantee that your farm machinery operates smoothly under a wide variety of work conditions. The high-torque delivery provided by these motors ensures the steady, reliable operation of your equipment, even during the most arduous farming tasks. If you are looking for a cost-effective solution to elevate the performance of your agricultural machinery, our wholesale Heavy-duty Hydraulic Motors are the perfect choice.



Highland HMF Series Hydraulic motor technical parameter:



HMF hydraulic pump and HMF hydraulic motor series 30 50 70 90 110 130
Displacement Max displacement ml/r 30 50 70 90 110 130
Speed Max continuous working speed
(Full load condition)
r/min 3500 3500 3200 3200 2900 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 162.3 252.3 342.6 432.9 535.3 632.4
Max output torque Nm 227 353 480 606 749 885
Power Continuous output power KW 45 79 107 139 149 176
Max power KW 62 95 114 150 173 205
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
weight HPV series hydraulic pump hydraulic oil drain kg 45 46 63 64 82 88
HPV series hydraulic motor hydraulic oil drain kg 30 30 36 36 36 38



Notices:



Periodic Upkeep: Highland Heavy Duty Hydraulic Motors are built for strenuous scenarios, but that doesn't negate the need for regular upkeep to ensure their longevity and optimal performance. Key maintenance tasks include checking and topping up hydraulic fluid as required, periodically inspecting the motor for any signs of wear or potential damage, and addressing any emerging issues without delay. Failure to adhere to a regular upkeep schedule can result in dwindling efficiency, increased wear and tear, and potential risk of motor malfunction.





Application:



Mixer truck: concrete mixer truck, cement mixer truck;

Coal mining machinery: scraper;

Industry: pharmaceutical machinery;

Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers



FAQ



Q1. Can I have a sample order for mobile crusher heavy duty hydraulic motors ?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

10 to 15 days for samples, mass production according to MOQ



Q3. Do you have any MOQ limit for mobile crusher heavy duty hydraulic motors ?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.



Q5. How to proceed an order for mobile crusher heavy duty hydraulic motors ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation
