ELECMAN ® BS4568 25mm Class 4 Hot Dipped Galvanised Steel BS Conduit Pipe

Application

ELECMAN® BS4568 25mm class 4 hot dipped galvanised steel BS conduit pipe is a steel raceway of circular cross section, which is metric threaded at both ends, with steel coupling at one end and thread protector at the other end. The galvanized steel conduits are used as raceway systems for electrical wiring in residential, commercial and industrial areas.

Features

• Hot dipped galvanized inside and out to class 4.

• Surface treatment is smooth, have good resistant to corrosion.

• Threaded at both ends.

• Each length supplied with one coupler and one plastic thread protector cap.

• Available in 20mm to 50mm diameter and 3.75m length.

• Manufactured in accordance with BS4568/EN61386.

Certification and Compliance

ELECMAN® BS4568 25mm class 4 hot dipped galvanised steel BS conduit pipe​s shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• BS4568/EN61386 standard.

Specification Data

ELECMAN provides full size BS4568 class 4 hot dipped galvanised steel BS conduits from 20mm to 50mm.

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for BS conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

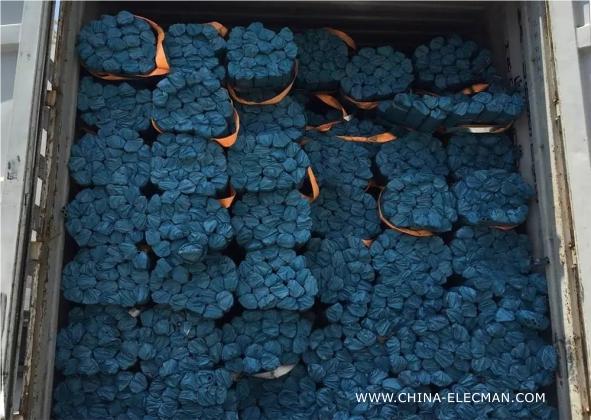

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. BS4568/EN61386 20-50mm class 4 hot dipped galvanized steel conduits are packed in bundles with woven bag, we also can put customers' sticker on pipes. On woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
