ELECMAN ® UL1242 Carbon Steel Intermediate Metal Conduit(IMC Conduit)

ELECMAN® UL1242 carbon steel intermediate metal conduit(IMC conduit), also commonly called medium-wall conduit, is a listed steel raceway of circular cross section, which is threaded, and nominally 10' long. IMC conduit is available in trade sizes 1/2 through 4. The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.

Applications

ELECMAN® UL1242 carbon steel intermediate metal conduit(IMC conduit) is a circular cross-section canalization used for electrical installations in any type of building.

Features

• Intermediate metal conduit (IMC conduit) is threaded on both ends.

• Intermediate metal conduit (IMC conduit) removes any sharp or rough edge to protect the cables when installations.

• The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.

• High strength ductile steel for long life and easy bending.

• Smooth, continuous raceway for fast wire pulling.
• Protects insulated electrical conductors and cables from magnetic fields, impact damage and crushing.
• IMC conduit connects with threaded type connectors for indoor and outdoor use.

Certifications and Compliances

ELECMAN ® UL1242 carbon steel intermediate metal conduit(IMC conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• American National Standards Institute, Inc.-ANSI C80.6.
• Underwriters Laboratories Standard for Electrical Metallic Tubing.-UL1242.

Specification Data

ELECMAN ® UL1242 carbon steel intermediate metal conduit(IMC conduit) are listed to UL Safety Standard 1242 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.

Raw Material

ELECMAN ® Intermediate Metal Conduit (IMC) is produced from Carbon structural steel (Q195).

Chemical Composition

Steel type and chemical composition (melting analysis) shall accord with Table 2.

Manufacturing Process

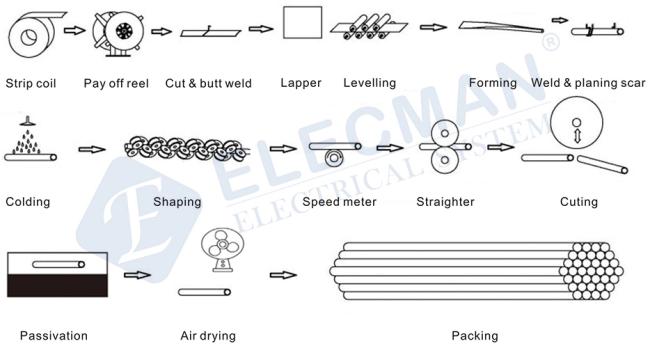

ELECMAN ® Intermediate Metal Conduit (IMC) is manufactured according to the following production process:

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for IMC conduits, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

IMC conduits are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table 3.
