PVC Coated Electrical Galvanized Flexible Steel Conduit 2 Inch

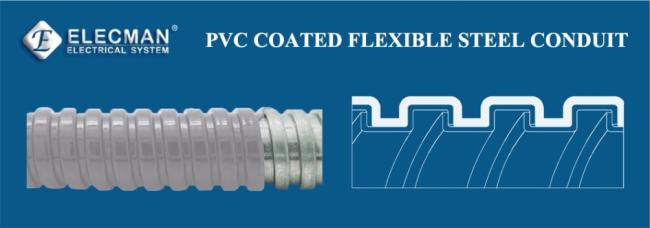

ELECMAN ® PVC Coated Electrical Galvanized Flexible Steel Conduit 2 Inch
Applications
ELECMAN ® PVC coated galvanized flexible steel conduit is used for mechanical protection of cable and wire in tunnels, hospitals, high-rise office blocks and public buildings, airlines, underground and others. These are PVC coated in order to ensure resistance against corrosion. These steel flexible conduits are most suitable for tight-spot installation and in places where certain water tightness is required.
Features
- High mechanical strength.
- Low smoke density.
- Black/Grey PVC are also available in LFHSUV resistant.
- National standard thickness of production, having super soft and excellent bending performance.
- Internal smooth structure is very easy for the entry of wire and cable.
- Working temperature:-10℃~80℃.
Certifications and Compliances
ELECMAN® 1/4" - 6" PVC coated galvanized carbon steel flexible conduits shall be produced to the following specification:
- UL Listed
Specification Data
ELECMAN provides full size PVC coated galvanized carbon flexible steel conduits from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSH-025 | 1/4" | 9.70 | 10.40 | 14.40 | 14.70 | 45 | 100 |
| JSH-038 | 3/8" | 12.30 | 12.80 | 16.70 | 17.20 | 50 | 100 |
| JSH-050 | 1/2" | 15.80 | 16.30 | 20.20 | 20.70 | 65 | 50 |
| JSH-075 | 3/4" | 20.70 | 21.20 | 25.50 | 26.10 | 75 | 50 |
| JSH-100 | 1" | 26.00 | 26.60 | 31.60 | 32.20 | 100 | 50 |
| JSH-125 | 1-1/4" | 34.70 | 35.40 | 40.80 | 41.50 | 125 | 25 |
| JSH-150 | 1-1/2" | 40.00 | 40.60 | 46.60 | 47.20 | 150 | 25 |
| JSH-200 | 2" | 51.30 | 51.90 | 58.10 | 58.70 | 175 | 25 |
| JSH-250 | 2-1/2" | 63.00 | 63.60 | 71.80 | 72.40 | 200 | 10 |
| JSH-300 | 3" | 78.00 | 78.70 | 87.20 | 87.90 | 225 | 10 |
| JSH-400 | 4" | 101.60 | 102.60 | 111.20 | 112.30 | 275 | 10 |
| JSH-500 | 5" | 125.00 | 127.00 | 137.00 | 139.50 | 300 | 5 |
| JSH-600 | 6" | 150.00 | 153.00 | 162.00 | 165.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. Black Color or Grey Color are available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.

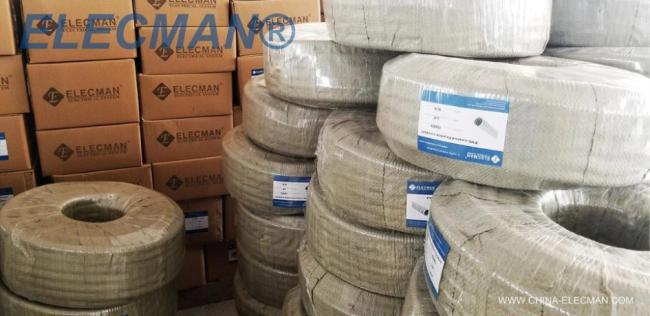

Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
