Liquid Tight Electrical Galvanized Flexible Steel Conduit 2 Inch
ELECMAN ® Liquid Tight Electrical Galvanized Flexible Steel Conduit 2 Inch
Applications
ELECMAN ® Liquid-tight flexible metal conduit is extensively applied on electrical protection of many important fields building, construction, critical power, petrochemical industry, especially in public sites with crowded people, such as office, shopping center, hospital, theater, factory and mine. Offer superior tensile resistant, vandalism resistant, high fatigue life, wide temperature tolerances, corrosion resistant and excellent waterproof, and fit with various fittings.
Features
- High mechanical strength.
- IP rating:IP64 & IP65.
- Inherent low fire hazard product.
- National standard thickness of production, having super soft and excellent bending performance.
- Internal smooth structure is very easy for the entry of wire and cable.

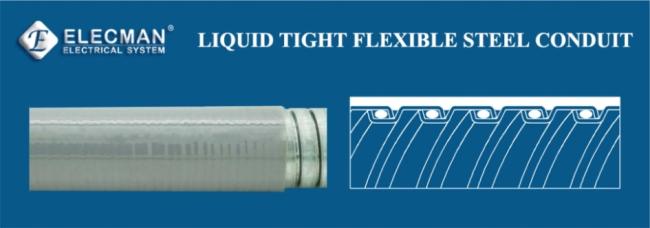

- Inner layer:Adopting galvanized steel band with special insulation treatment.
- Outer layer:Adopting PVC raw material (anti-UV, anti-aging).
- Working Temperature:-10℃~80℃.
- Superior protection for circuits located in hostile environments.
Certifications and Compliances
ELECMAN® 1/4" - 4" liquid tight galvanized steel flexible conduits shall be produced to the following specification:
- UL Listed
Specification Data
ELECMAN provides full size liquid tight galvanized flexible steel conduits from 1/4" to 4".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB-025 | 1/4" | 6.20 | 6.70 | 11.40 | 11.90 | 35 | 100 |
| JSB-038 | 3/8" | 12.30 | 12.80 | 17.50 | 18.00 | 60 | 100 |
| JSB-050 | 1/2" | 15.80 | 16.30 | 20.80 | 21.30 | 85 | 50 |
| JSB-075 | 3/4" | 20.70 | 21.20 | 26.30 | 26.70 | 100 | 50 |
| JSB-100 | 1" | 26.20 | 26.60 | 32.70 | 33.40 | 150 | 50 |
| JSB-125 | 1-1/4" | 34.80 | 35.40 | 41.40 | 42.20 | 180 | 25 |
| JSB-150 | 1-1/2" | 40.10 | 40.60 | 47.40 | 48.30 | 220 | 25 |
| JSB-200 | 2" | 51.30 | 51.90 | 59.40 | 60.30 | 250 | 25 |
| JSB-250 | 2-1/2" | 63.00 | 63.60 | 72.10 | 73.00 | 300 | 10 |
| JSB-300 | 3" | 78.00 | 78.70 | 87.90 | 88.90 | 450 | 10 |
| JSB-400 | 4" | 101.60 | 102.60 | 113.20 | 114.30 | 600 | 10 |
| Notes: Length of roll can be made according to customers' requirements. Black Color or Gray Color is available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information

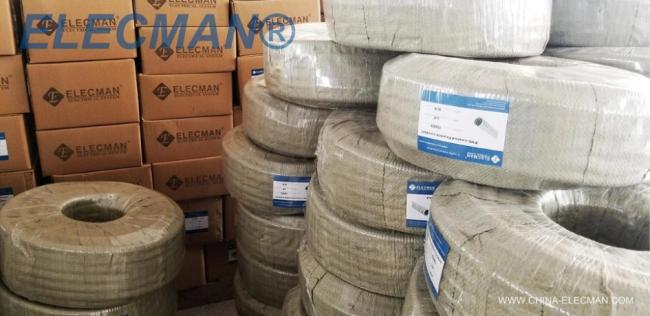

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 4", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
