ELECMAN ® Form 7 Gray Iron 1/2" - 2" IMC/Rigid Conduit Body Threaded X Type

Applications

ELECMAN ® Form 7 gray iron 1/2" - 2" IMC/Rigid conduit bodies threaded X type are manufactured from gray iron, complete with hot dipped galvanized, zinc plated or aluminum enameled finish with superior corrosion resistant coating and NPT tapered hubs. Serves as pull outlet for conductors being installed, enables 90 degree bends in conduit system and provides openings for making splices and taps in conductors. UL514A listed and available in 1/2" to 2" sizes.

Features

• Smooth, rounded integral bushings in hubs protect conductor insulation.
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.
• Gray iron bodies with cast covers and gasket are suitable for use in wet locations.
• Unique clip cover design allows easy removal at any later time, without damaging the conduit body, the cover is secured with clips, not screws.
• Flat back design provides greater cubic content for easier wire pulling, and more room for splicing, Fits flush and snug against flat surfaces for more stable installation.
• Smooth hub bushings and cover openings protect conductor insulation.
• Smooth hub openings allow easy conduit joining.
• Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque. Cover screws and clips are captive to prevent loss.
• Hub size (inches), body style, compliance data, maximum wire number/size and cubic capacity molded into body.

Certifications and Compliances

ELECMAN® Form 7 gray iron IMC/Rigid conduit bodies threaded X type are produced to the following specifications:

• UL Standard 514A
• Fed.Spec. W-C-586D
• NEMA:FB-1

Specification Data

ELECMAN provides full size form 7 gary iron IMC/Rigid conduit bodies threaded X type.

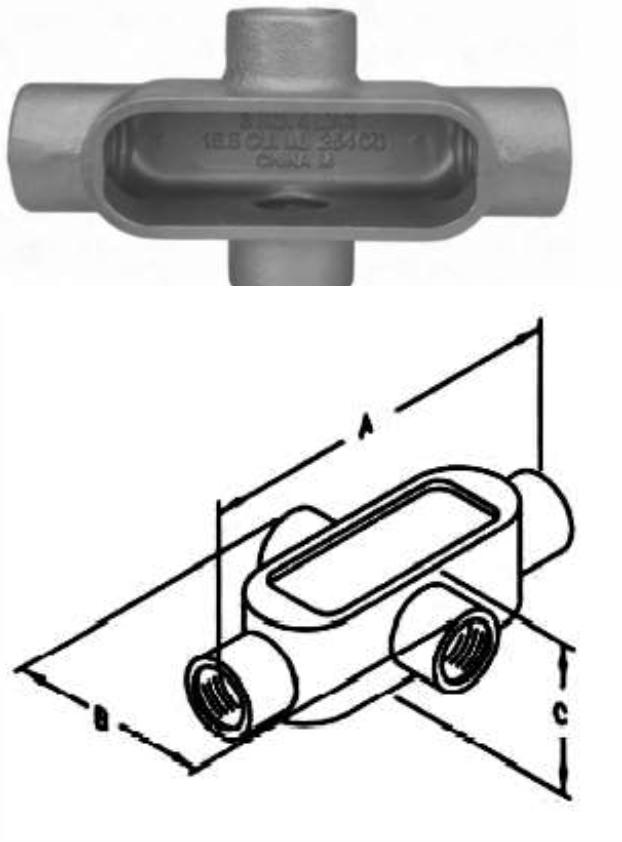

FORM 7 Conduit Body X Type(threaded type)
Gray Iron
	CAT #	Trade Size	Dim A	Dim B	Dim C
	GX050	1/2"	5.500	3.063	2.188
	GX075	3/4"	6.250	3.250	2.688
	GX100	1"	7.063	3.688	2.813
	GX125	1-1/4"	7.625	4.188	2.563
	GX150	1-1/2"	8.188	4.563	2.813
	GX200	2"	9.250	5.188	3.438

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

More Specifications

ELECMAN provides more specification and type form 7 gray iron IMC/Rigid conduit bodies threaded type.

FORM 7 Conduit Body LB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GLB050	1/2"	4.500	1.313	2.188	Gray Iron LB Type Threaded Connection
GLB075	3/4"	5.500	1.500	2.500
GLB100	1"	6.438	1.750	2.813
GLB125	1-1/4"	6.563	2.188	3.375
GLB150	1-1/2"	7.125	2.438	3.625
GLB200	2"	8.125	3.000	4.375
GLB250	2-1/2"	10.500	4.250	5.313
GLB300	3"	10.625	4.250	6.063
GLB325	3-1/2"	12.625	5.188	6.563
GLB400	4"	12.625	5.188	7.000
FORM 7 Conduit Body LL Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GLL050	1/2"	4.563	2.125	1.438	Gray Iron LL Type Threaded Connection
GLL075	3/4"	5.125	2.375	1.688
GLL100	1"	6.063	2.688	1.875
GLL125	1-1/4"	6.563	3.188	2.375
GLL150	1-1/2"	7.125	3.500	2.625
GLL200	2"	8.125	4.125	3.250
FORM 7 Conduit Body LR Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GLR050	1/2"	4.563	2.125	1.438	Gray Iron LR Type Threaded Connection
GLR075	3/4"	5.125	2.375	1.688
GLR100	1"	6.063	2.688	1.875
GLR125	1-1/4"	6.500	3.125	2.250
GLR150	1-1/2"	7.188	3.500	2.500
GLR200	2"	8.188	4.063	3.250
FORM 7 Conduit Body C Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GC050	1/2"	5.313	1.313	1.375	Gray Iron C Type Threaded Connection
GC075	3/4"	6.000	1.563	1.688
GC100	1"	7.000	1.750	1.875
GC125	1-1/4"	7.625	2.188	2.375
GC150	1-1/2"	8.818	2.438	2.625
GC200	2"	9.250	3.000	3.250
GC250	2-1/2"	12.188	4.188	3.625
GC300	3"	12.188	4.187	4.438
FORM 7 Conduit Body T Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GT050	1/2"	5.500	2.250	1.875	Gray Iron T Type Threaded Connection
GT075	3/4"	6.125	2.438	2.125
GT100	1"	7.063	2.750	2.313
GT125	1-1/4"	7.625	3.188	2.375
GT150	1-1/2"	8.188	3.500	3.500
GT200	2"	9.250	4.125	4.125
GT250	2-1/2"	12.000	5.750	5.750
GT300	3"	12.188	5.875	5.875
GT325	3-1/2"	14.250	6.813	6.813
GT400	4"	14.250	6.813	6.813
FORM 7 Conduit Body TB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GTB050	1/2"	5.500	1.313	2.750	Gray Iron TB Type Threaded Connection
GTB075	3/4"	6.125	1.562	3.063
GTB100	1"	7.063	1.750	3.250
GTB125	1-1/4"	7.625	2.188	2.438
GTB150	1-1/2"	8.188	2.428	2.625
GTB200	2"	9.250	3.000	2.250
FORM 7 Conduit Body X Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GX050	1/2"	5.500	3.063	1.875	Gray Iron X Type Threaded Connection
GX075	3/4"	6.250	3.250	2.188
GX100	1"	7.063	3.688	2.313
GX125	1-1/4"	7.625	4.188	2.375
GX150	1-1/2"	8.188	4.563	2.625
GX200	2"	9.250	5.188	3.250
FORM 7 Conduit Body E Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
GE050	1/2"	4.563	3.131	1.438	Gray Iron E Type Threaded Connection
GE075	3/4"	5.188	1.500	1.688
GE100	1"	6.063	1.750	1.875
