6 Strand 6x61 Offshore Mooring Steel Wire Rope – High-Strength, Corrosion-Resistant, Reliable for Marine Applications

 6 Strand 6x61 Offshore Mooring Steel Wire Rope – High-Strength, Corrosion-Resistant, Reliable for Marine Applications

Description:

The GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope is manufactured using high tensile strength steel wire. It features a steel core, which can be an independent wire rope core (IWRC) or a wire strand core (WSC). This wire rope is primarily designed for offshore applications, including the positioning and anchoring of mobile drilling platforms, floating production units, and offshore loading systems.

In ocean mooring systems, the six-strand wire rope is expendable and typically requires replacement every few years. The construction of the GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope can be either right ordinary lay (S Z) or left ordinary lay (Z S).

Product Features:

1. High Tensile Strength: The GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope is manufactured using high tensile strength steel wire, ensuring excellent load-bearing capacity and durability.
2. Versatile Construction: Available in different constructions such as 6x55SWS, 6x61FWS, and 6x64SFS, providing options to suit various application requirements.
3. Reliable Core Options: The wire rope core can be chosen as an independent wire rope core (IWRC) or a wire strand core (WSC), offering different structural characteristics based on specific needs.
4. Corrosion Resistance: The wire rope undergoes galvanization treatment and is coated with rust-proof greasing, providing superior corrosion resistance and extending its service life.
5. Certified Quality: The product holds certifications from reputable organizations including RINA, BV, CCS, CR, NK, ABS, DNV, LR, and Mill Certificate, ensuring its quality and reliability.
6. Wide Range of Applications: Designed for the positioning and anchoring of mobile drilling platforms, floating production units, and offshore loading systems in the offshore industry.
7. Lightweight Design: Compared to alternative mooring wire ropes, it features a lightweight design, facilitating easier installation and handling.
8. High Strength and Impact Resistance: Capable of withstanding impact loads and high tensions, ensuring safe and reliable mooring performance in demanding offshore conditions.
9. Exceptional Durability: Engineered and manufactured to deliver excellent durability, allowing for prolonged use in harsh marine environments.
10. Flexible Performance: Exhibits good flexibility and bending performance, accommodating complex mooring requirements and providing ease of use.
11. Rigorously Tested: The wire rope undergoes rigorous testing and stringent quality control measures to ensure consistent and dependable performance.
12. Easy Installation and Maintenance: The lightweight design and flexible construction of the wire rope make installation and maintenance processes convenient and efficient.
13. Long Service Life: Utilizes high-quality materials and advanced manufacturing techniques, resulting in a long service life and reduced maintenance costs.
14. Environmental Friendly: Complies with environmental regulations, incorporating sustainable materials and manufacturing processes.
15. Customizable Options: Available in various dimensions, constructions, and packaging options to meet specific project requirements.

Main Technical Specifications:

1. Standard: GB/T 33364-2016
2. Material: High tensile strength galvanized steel wire
3. Diameter: 72mm to 128mm
4. Construction: 6x55SWS, 6x61FWS, 6x64SFS
5. Type: WS~IWRC
6. Test: Destructive and tension test
7. Classification Certificates: RINA, BV, CCS, CR, NK, ABS, DNV, LR, and Mill Certificate
8. Surface treatment: Galvanized with rust-proof greasing
9. Packaging: Available on reels or in coils, based on your requirements
10. Application: Ideal for positioning and anchoring mobile drilling platforms, floating production units, and offshore loading systems
11. Advantages: Lightweight, high strength, and capable of withstanding impact loads

Main Technical Parameters:

GB/T 33364-2016 6 Strand Class 6x61 Offshore Mooring Steel Wire Rope

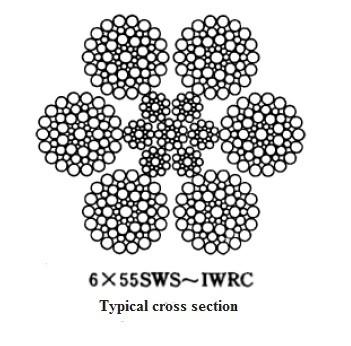

		Typical Construction
		Rope Construction	Strand construction	No. of outer layer wires
				Total	Per Strand
		6x55SWS	1-9-9-9+9-18	108	18
		6x61FWS	1-5-5F-10-10+10-20	120	20
		6x64SFS	1-9-9-9F-18-18	108	18
Nominal Dia. mm	Approximate weight kg/100m	Rope Grade
		1570	1770	1960
		Minimum breaking force kN
72	2260	2900	3270	3620
76	2510	3230	3640	4030
80	2780	3580	4030	4470
84	3070	3940	4450	4920
88	3370	4330	4880	5400
92	3680	4730	5330	5910
96	4010	5150	5810	6430
100	4350	5590	6300	6980
104	4710	6050	6820	7550
108	5070	6520	7350	-
112	5460	7010	7900	-
116	5850	7520	8480	-
120	6260	8052	9070	-
124	6690	8590	9690	-
128	7130	9160	10300	-

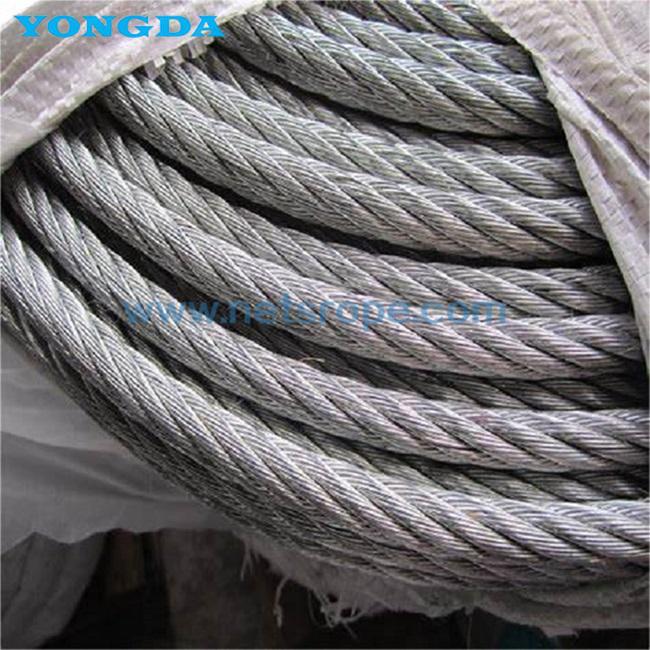

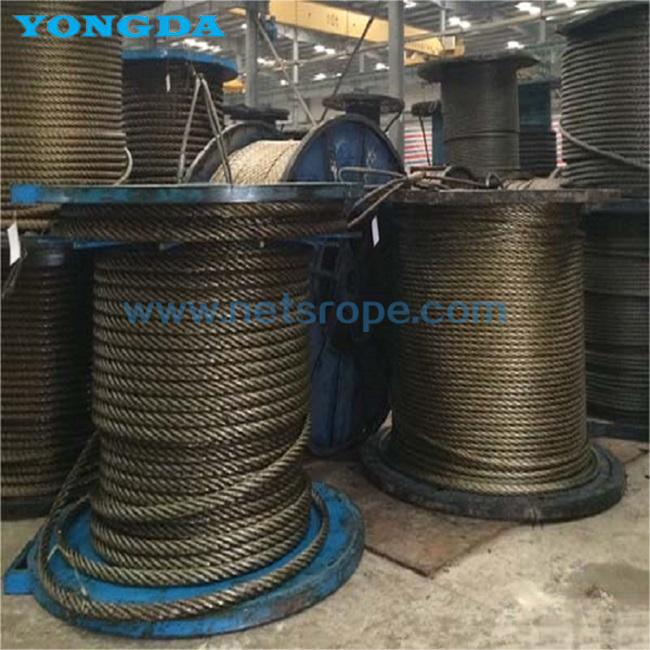

Product of GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope:

FAQ:

Q0: Are you a factory or trading company?

A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.

Q1: What is your terms of packing?

A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.

Q2: What is your terms of payment?

A2: T/T & LC.

Q3: What is your terms of delivery?

A3: EXW, FOB, CFR, CIF, DDU.

Q4: How about your delivery time?

A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.

Q5: Can you produce according to the samples?

A5: Yes, we can produce as your samples or drawings.

Q6: What is your sample policy?

A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.

Q7: Do you test all your goods before delivery?

A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
