35W10R Film High Power Non Inductive Resistors For Voltage Regulation
Non-inductive Style High Power Film Resistors for Voltage Regulation ,
for Mounting onto a Heatsink,Thick Film Technology
Structure
1.The resistor film with precious metal ruthenium slurry,with stable electrical properties.
2.The completely encapsulated and insulated package for low ohmic value and Non-Inductive design for high-frequency and pulse-loading applications.
3.Thick Film Resistor for high-frequency and pulse-loading applications;
4.Non-Inductive,Resistance-high voltage,small size,high power,long life,moisture resistance,high stability.
Features
1.Recommendations for mounting onto a heatsink to enhance the heat dissipation.Thick Film Resistor for high-frequency and pulse-loading applications;
2.The bottom case is attached to the system heatsink, and the resistor dissipates the heat through the heat exchange between the bottom case and the heatsink.The ambient temperature here refers to the bottom case temperature of the resistor, which is generally referred to as the temperature in the center of the bottom case.
3.Ideal use for power supplies,mounted to a heat sink.
Specifications :
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±50～±500PPM/℃ |
| Short Time Overload | 5 times rated power ,but not more than 1.5 times the maximum continuous working voltage for 5 seconds | △R≤±(0.3％+0.1Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Room Temperature Durability |
Rated votage,90mins on ,stop 30mins,the central bottom case temperature ≤ 85 ℃(120W-800W), total 1000hours |
△R≤±(0.5％+0.1Ω) |
| Humidity steady state | Temp.:40±2℃ ,Humidity:90％-95％.56days | △R≤±(0.25％+0.1Ω) |
| High/Low Temperature Resistance Testing | store at -55℃～125℃ for 2H, cycle 5times | △R≤±(1%+0.1Ω) |
| Working Ambient Temperature | -55℃～150℃ | / |
Applications
Widely used in Variable speed drive,power supply,control equipment,communication,automatic control,switching power supplies ,snubbers and motor control ,high frequrncy and pulse loading,voltage regulation,automotive and measurements,photovoltaic power generation and other new energy fields.

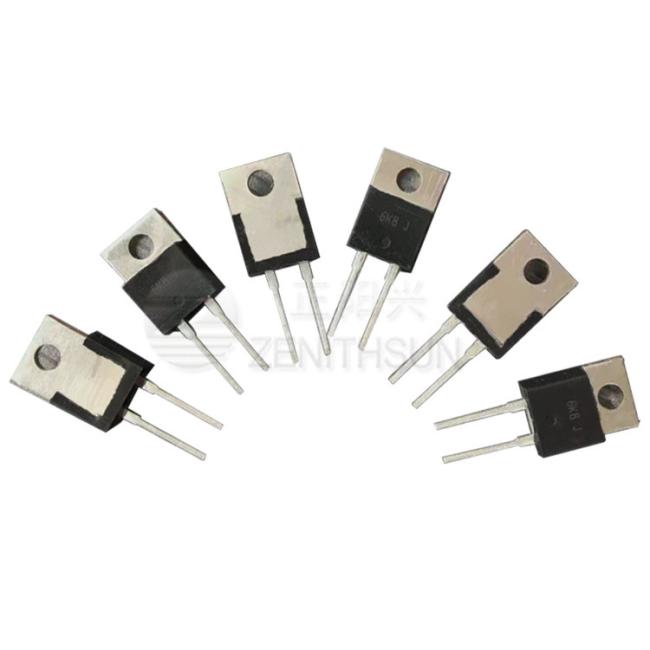

Product Image:
How to make an order:
ZMP30_Ohmic Value_Tolerance
For example:ZMP30 40R 10%
