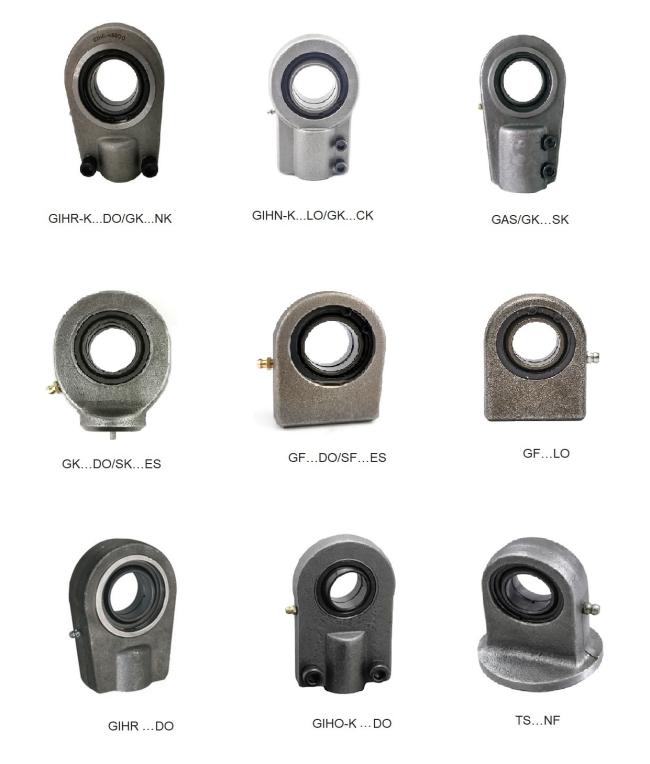

HYDRAULIC ROD ENDS ( 80KI1149 100KI1149 125KI1149 160KI1149 200KI1149)
Product Description
Hydraulic Rod Ends are designed for especially high forces and are used for hydraulic cylinders.
Applications:
Mining & quarrying, Heavy construction, Motorsport, Offshore oil & gas, Marine.
-Rod ends housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE... ES or GE... ES 2RS and rod end housing.
-With locking slot and nut.
-Rod end housing with a lubricating hole or grease nipple.
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||||||||
| d | d3 6H |
d4 | L3 min |
B | C1 | d2 | L7 min |
h1 | L4 | d5 | d1 | C2 | a | C | C0 | kg | |
| GIHO-K 12 DO | 12 | M10x1.25 | 17 | 15 | 10 | 8 | 35 | 16 | 42 | 59.5 | 40 | 15.0 | 13 | 11 | 10.8 | 17.0 | 0.12 |
| GIHO-K 16 DO | 16 | M12x1.25 | 21 | 17 | 14 | 11 | 45 | 20 | 48 | 70.5 | 45 | 20.7 | 13 | 10 | 21.1 | 28.5 | 0.22 |
| GIHO-K 20 DO | 20 | M14x1.5 | 25 | 19 | 16 | 13 | 55 | 25 | 58 | 85.5 | 55 | 24.2 | 17 | 9 | 30.0 | 42.5 | 0.43 |
| GIHO-K 25 DO | 25 | M16x1.5 | 30 | 23 | 20 | 17 | 65 | 30 | 68 | 100.5 | 62 | 29.3 | 17 | 7 | 48.0 | 67.0 | 0.67 |
| GIHO-K 30 DO | 30 | M20x1.5 | 36 | 29 | 22 | 19 | 80 | 35 | 85 | 125.0 | 77 | 34.2 | 19 | 6 | 62.0 | 108.0 | 1.25 |
| GIHO-K 40 DO | 40 | M27x2.0 | 45 | 37 | 28 | 23 | 100 | 45 | 105 | 155.0 | 90 | 45.0 | 23 | 7 | 100.0 | 156.0 | 2.16 |
| GIHO-K 50 DO | 50 | M33x2.0 | 55 | 46 | 35 | 30 | 120 | 58 | 130 | 190.0 | 105 | 55.9 | 30 | 6 | 156.0 | 245.0 | 3.90 |
| GIHO-K 60 DO | 60 | M42x2.0 | 68 | 57 | 44 | 38 | 160 | 68 | 150 | 230.0 | 134 | 66.8 | 38 | 6 | 245.0 | 380.0 | 7.15 |
| GIHO-K 80 DO | 80 | M48x2.0 | 90 | 64 | 55 | 47 | 205 | 82 | 185 | 287.5 | 156 | 89.4 | 47 | 6 | 400.0 | 585.0 | 15.00 |
| GIHO-K 10 0DO | 100 | M64x3.0 | 110 | 86 | 70 | 55 | 240 | 116 | 240 | 360.0 | 190 | 109.5 | 55 | 7 | 610.0 | 865.0 | 27.30 |
