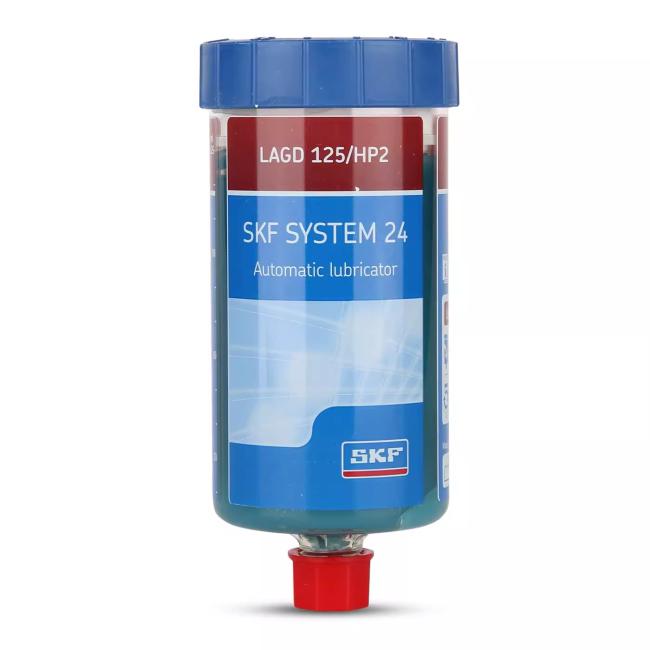

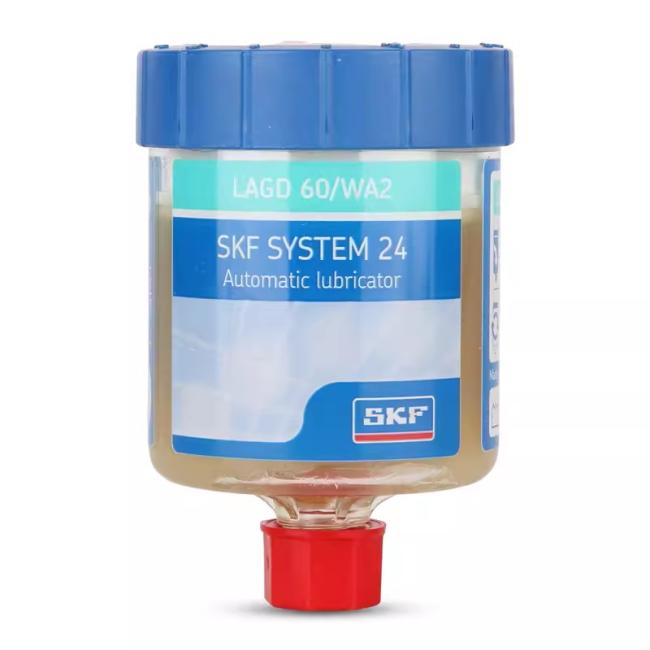

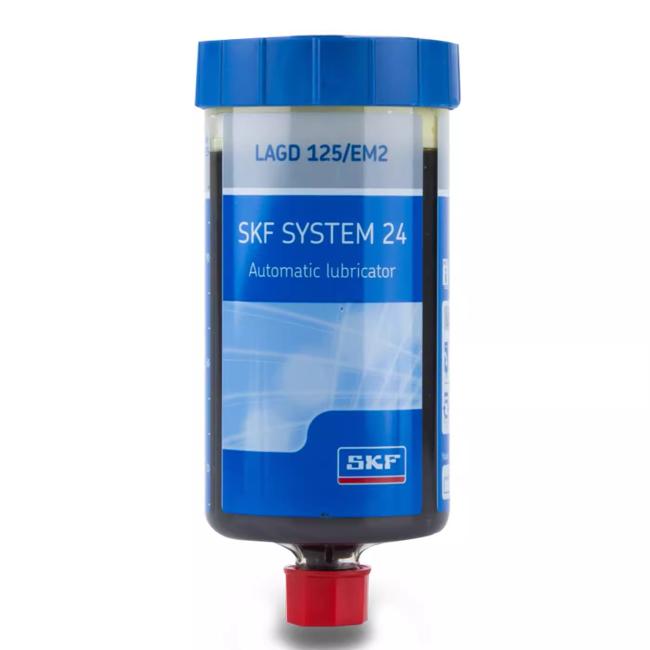

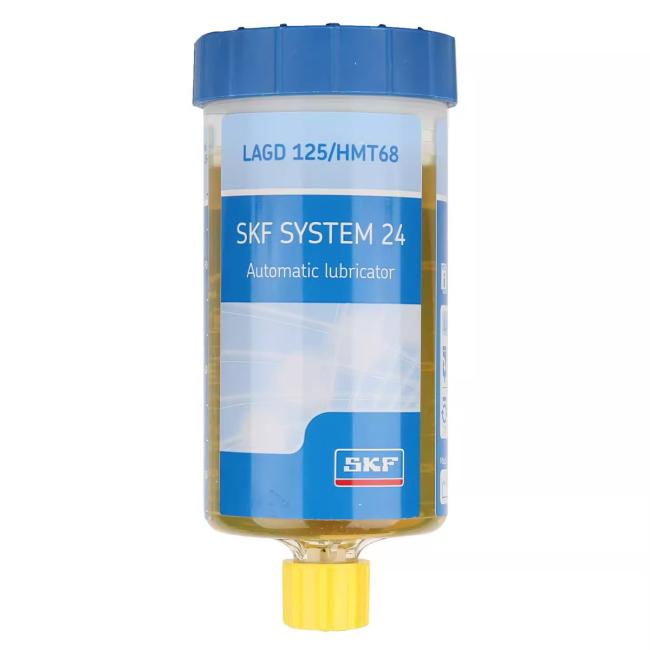

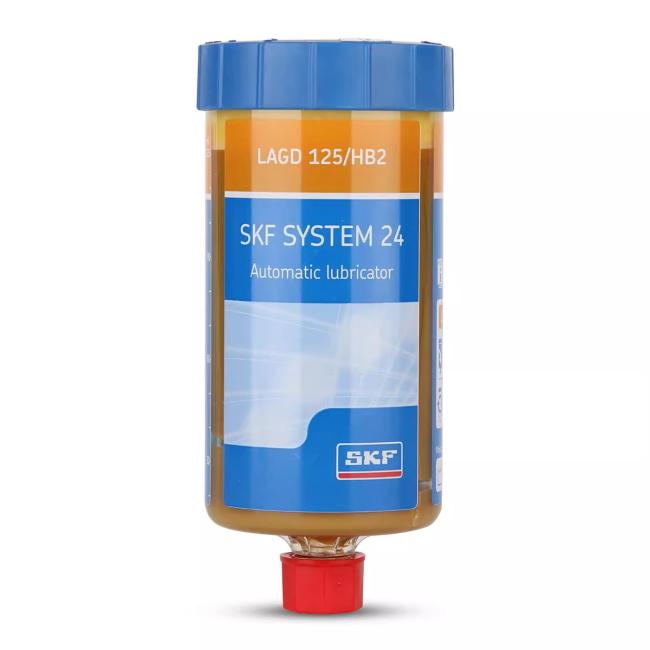

SKF Bearing Automatic Lubricator LAGD125/WA2 LAGD125/HQ2 LAGD125/EM2 LAGD125/HB2 LAGD125/HMT68 LAGD125/HP2 LAGD 60/WA2

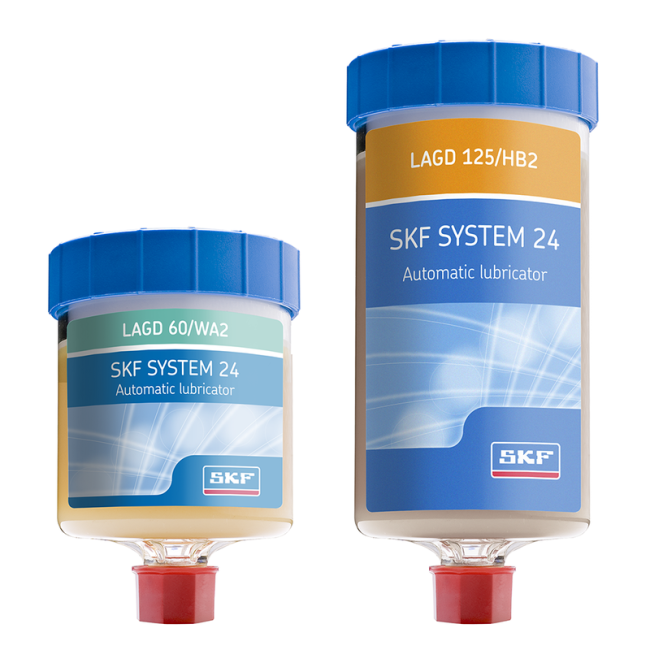

Automatic lubricator SKF SYSTEM 24 (LAGD 60 and LAGD 125)

Application

The SKF SYSTEM 24 LAGD is a gas driven single-point automatic lubricator, which can be used to supply lubricant (grease or oil) to single lubrication points. SKF SYSTEM 24 lubricators can be set to deliver a specific quantity of lubricant over a set time period. This allows a more accurate control of the amount of lubricant supplied compared to traditional manual re-lubrication techniques. The SKF SYSTEM 24 LAGD is ideal for applications which are difficult to reach with a grease gun, or where a large number of greasing points mean that manual greasing techniques would be less effective.

Typical applications include, amongst others:

Pumps

Fans & Blowers

Conveyors

Elevators (guides) and escalators (chains)

Cranes

Food Processing machinery

Petrochemical industry

Chain

Description

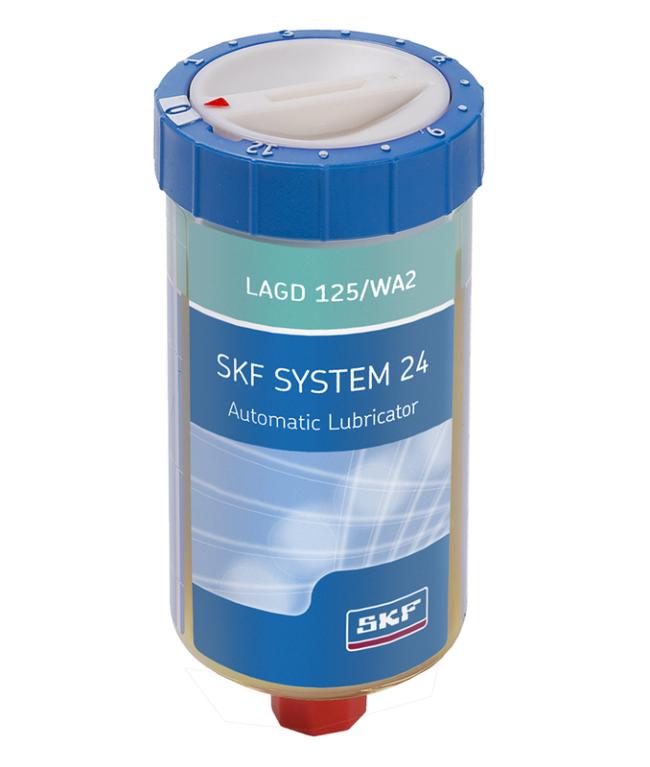

The SKF SYSTEM 24 LAGD consists of a transparent container filled with a specified lubricant and a cartridge containing an electrochemical gas cell that produces inert gas. Once activated, the internal batteries are electrically connected and gas production begins. The gas production rate is proportional to the electrical current, and can be adjusted by selecting the appropriate dispense period on the time dial on top of the lubricator. The dispense period can be between 1 and 12 months. In the event that a machine, to which the unit is fitted, is at a prolonged standstill, then the unit can be temporarily deactivated
