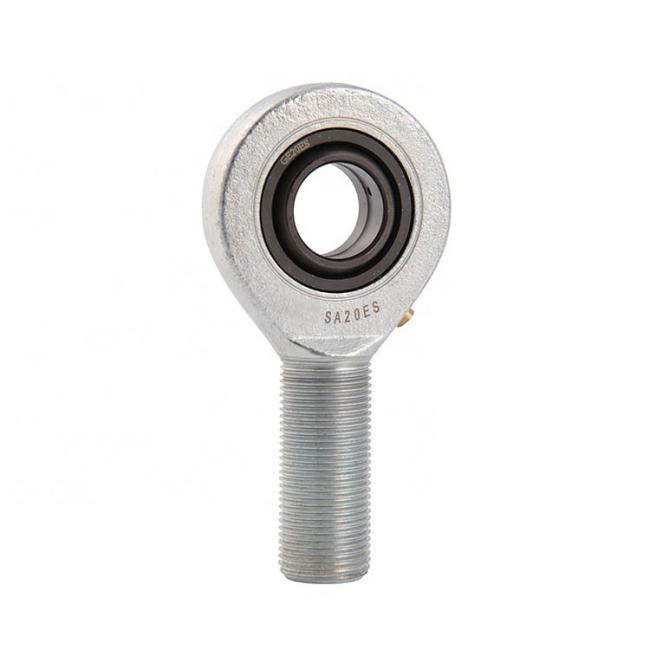

SAA...ES/GAR...DO/EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA45ES SA45-1ES SA50ES SA50-1ES SA60ES )
Product Description
A rod end bearing is a common type of mechanical joint used on the ends of control rods.The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.
Applications:
Packaging & Shipping
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
![]()
![]()
- Interchange Series : SAA...ES/ GAR...DO / EA.../GAR...ES
-
SA...E(S)Specification:- Rod body with right or left-hand male thread.- It is made up of a radial spherical plain bearing GE .. E (S) or GE .. ES 2RS and rod body.- Surface of rod body zinc plated,housing of SA..ES with a lubricating hole or grease nipple.
![]()
![]()
Bearing No. Dimensions (mm) Load Ratings
(KN)Mass d d3
6gB C1 L1
mind2 L7
minh L2 dk R1s α
≈C C0 kg SA6E* 6 M6x1.0 6 4.4 18 21 12 36 46.5 10.0 0.3 13 3.40 8.15 0.017 SA8E* 8 M8x1.25 8 6.0 22 24 14 42 54.0 13.0 0.3 15 5.50 12.90 0.029 SA10E* 10 M10x1.5 9 7.0 26 29 15 48 62.5 16.0 0.3 12 8.15 17.60 0.051 SA12E* 12 M12x1.75 10 8.0 28 34 18 54 71.0 18.0 0.3 11 10.80 24.50 0.086 SA15ES 15 M14x2.0 12 10.0 34 40 20 63 83.0 22.0 0.3 8 17.00 36.00 0.140 SA17ES 17 M16x2.0 14 11.0 36 46 23 69 92.0 25.0 0.3 10 21.20 45.00 0.190 SA20ES 20 M20x1.5 16 13.0 43 53 27 78 104.5 29.0 0.6 9 30.00 60.00 0.310 SA25ES 25 M24x2.0 20 17.0 53 64 32 94 126.0 35.5 0.6 7 48.00 83.00 0.560 SA30ES 30 M30x2.0 22 19.0 65 73 37 110 146.5 40.7 0.6 6 62.00 110.00 0.890 SA35ES 35 M36x3.0 25 21.0 82 82 42 140 181.0 47.0 0.6 6 80.00 146.00 1.400 SA40ES 40 M39x3.0 28 23.0 86 92 48 150 196.0 53.0 0.6 7 100.00 180.00 1.800 SA40-1ES 40 M42x3.0 28 23.0 86 92 48 150 196.0 53.0 0.6 7 100.00 180.00 1.850 SA45ES 45 M42x3.0 32 27.0 94 102 52 163 214.0 60.0 0.6 7 127.00 240.00 2.600 SA45-1ES 45 M45x3.0 32 27.0 94 102 52 163 214.0 60.0 0.6 7 127.00 240.00 2.660 SA50ES 50 M45x3.0 35 30.0 107 112 60 185 241.0 66.0 0.6 6 156.00 290.00 3.400 SA50-1ES 50 M52x3.0 35 30.0 107 112 60 185 241.0 66.0 0.6 6 156.00 290.00 3.500 SA60ES 60 M52x3.0 44 38.0 115 135 72 210 277.5 80.0 1.0 6 245.00 450.00 5.900 SA60-1ES 60 M60x4.0 44 38.0 115 135 72 210 277.5 80.0 1.0 6 245.00 450.00 6.020 SA70ES 70 M56x4.0 49 42.0 125 160 87 235 315.0 92.0 1.0 6 315.00 610.00 8.200 SA70-1ES 70 M72x4.0 49 42.0 125 160 87 235 315.0 92.0 1.0 6 315.00 610.00 8.380 SA80ES 80 M64x4.0 55 47.0 140 180 100 270 360.0 105.0 1.0 6 400.00 750.00 12.000 SA80-1ES 80 M80x4.0 55 47.0 140 180 100 270 360.0 105.0 1.0 6 400.00 750.00 12.200 -
![]()
