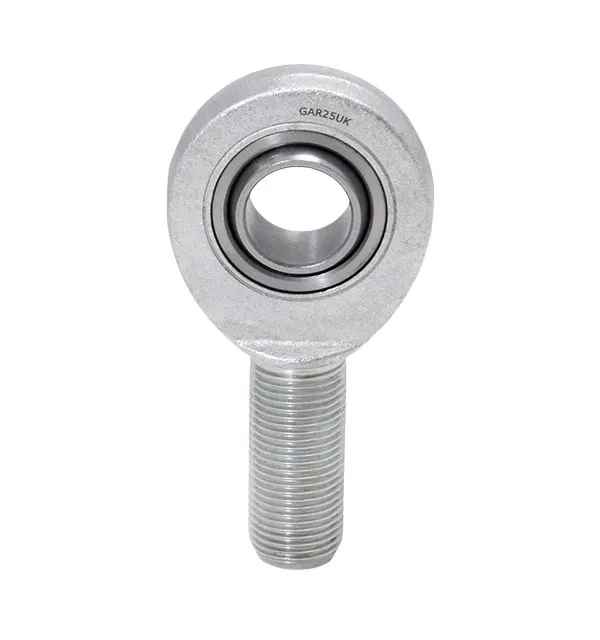

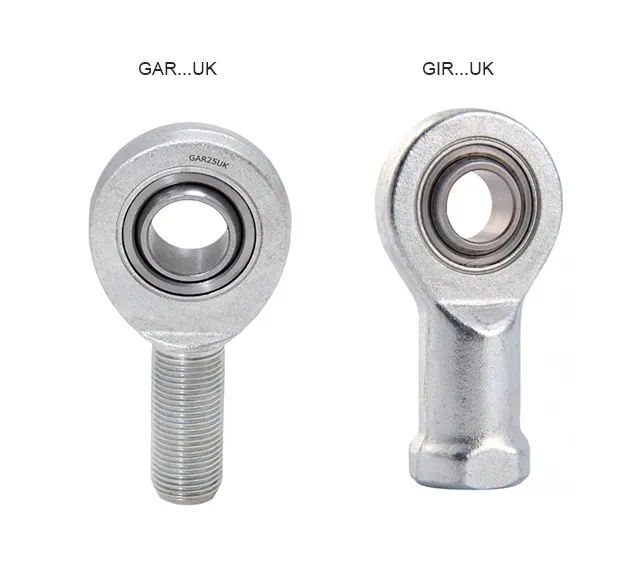

GAR...UK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(GAR6UK GAR8UK GAR10UK GAR12UK GAR15UK )
Product Description
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
Technical specification
- Rod body with right or left-hand male thread.
- It is made up of a maintenance-free radial spherical plain bearing GE..UK or GE..UK 2RS and rod body.
- Surface of rod body zinc plated.
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||||||
| d | d3 6g |
B | C1 | L1 min |
d2 | L7 | h | L2 | dk | R1s | α ≈ |
C | C0 | kg | |
| GAR6UK | 6 | M6x1.0 | 6 | 4.4 | 18 | 21 | 12 | 36 | 46.5 | 10.0 | 0.3 | 13 | 3.60 | 8.15 | 0.017 |
| GAR8UK | 8 | M8x1.25 | 8 | 6.0 | 22 | 24 | 14 | 42 | 54.0 | 13.0 | 0.3 | 15 | 5.85 | 12.90 | 0.029 |
| GAR10UK | 10 | M10x1.5 | 9 | 7.0 | 26 | 29 | 15 | 48 | 62.5 | 16.0 | 0.3 | 12 | 8.65 | 17.60 | 0.051 |
| GAR12UK | 12 | M12x1.75 | 10 | 8.0 | 28 | 34 | 18 | 54 | 71.0 | 18.0 | 0.3 | 11 | 11.40 | 24.50 | 0.086 |
| GAR15UK | 15 | M14x2.0 | 12 | 10.0 | 34 | 40 | 20 | 63 | 83.0 | 22.0 | 0.3 | 8 | 17.60 | 36.00 | 0.140 |
| GAR17UK 2RS | 17 | M16x2.0 | 14 | 11.0 | 36 | 46 | 23 | 69 | 92.0 | 25.0 | 0.3 | 10 | 22.40 | 45.00 | 0.190 |
| GAR20UK 2RS | 20 | M20x1.5 | 16 | 13.0 | 43 | 53 | 27 | 78 | 104.5 | 29.0 | 0.6 | 9 | 31.50 | 60.00 | 0.310 |
| GAR25UK 2RS | 25 | M24x2.0 | 20 | 17.0 | 53 | 64 | 32 | 94 | 126.0 | 35.5 | 0.6 | 7 | 51.00 | 83.00 | 0.560 |
| GAR30UK 2RS | 30 | M30x2.0 | 22 | 19.0 | 65 | 73 | 37 | 110 | 146.5 | 40.7 | 0.6 | 6 | 66.50 | 110.00 | 0.890 |
| GAR35UK 2RS | 35 | M36x3.0 | 25 | 21.0 | 82 | 82 | 42 | 140 | 181.0 | 47.0 | 0.6 | 6 | 112.00 | 146.00 | 1.400 |
| GAR40UK 2RS | 40 | M39x3.0 | 28 | 23.0 | 86 | 92 | 48 | 150 | 196.0 | 53.0 | 0.6 | 7 | 140.00 | 180.00 | 1.800 |
| GAR40-1UK 2RS | 40 | M42x3.0 | 28 | 23.0 | 86 | 92 | 48 | 150 | 196.0 | 53.0 | 0.6 | 7 | 140.00 | 180.00 | 1.850 |
| GAR45UK 2RS | 45 | M42x3.0 | 32 | 27.0 | 94 | 102 | 52 | 163 | 214.0 | 60.0 | 0.6 | 7 | 180.00 | 240.00 | 2.600 |
| GAR50UK 2RS | 50 | M45x3.0 | 35 | 30.0 | 107 | 112 | 60 | 185 | 241.0 | 66.0 | 0.6 | 6 | 220.00 | 290.00 | 3.400 |
| GAR50-1UK 2RS | 50 | M52x3.0 | 35 | 30.0 | 107 | 112 | 60 | 185 | 241.0 | 66.0 | 0.6 | 6 | 220.00 | 290.00 | 3.500 |
| GAR60UK 2RS | 60 | M52x3.0 | 44 | 38.0 | 115 | 135 | 75 | 210 | 277.5 | 80.0 | 1.0 | 6 | 345.00 | 450.00 | 5.900 |
| GAR60-1UK 2RS | 60 | M60x3.0 | 44 | 38.0 | 115 | 135 | 75 | 210 | 277.5 | 80.0 | 1.0 | 6 | 345.00 | 450.00 | 6.020 |
| GAR70UK 2RS | 70 | M56x4.0 | 49 | 42.0 | 125 | 160 | 87 | 235 | 315.0 | 92.0 | 1.0 | 6 | 440.00 | 610.00 | 8.200 |
| GAR70-1UK 2RS | 70 | M72x4.0 | 49 | 42.0 | 125 | 160 | 87 | 235 | 315.0 | 92.0 | 1.0 | 6 | 440.00 | 610.00 | 8.380 |
| GAR80UK 2RS | 80 | M64x4.0 | 55 | 47.0 | 140 | 180 | 100 | 270 | 360.0 | 105.0 | 1.0 | 6 | 570.00 | 750.00 | 12.000 |
| GAR80-1UK 2RS | 80 | M80x4.0 | 55 | 47.0 | 140 | 180 | 100 | 270 | 360.0 | 105.0 | 1.0 | 6 | 570.00 | 750.00 | 12.200 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
