SIZP...S Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S)
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

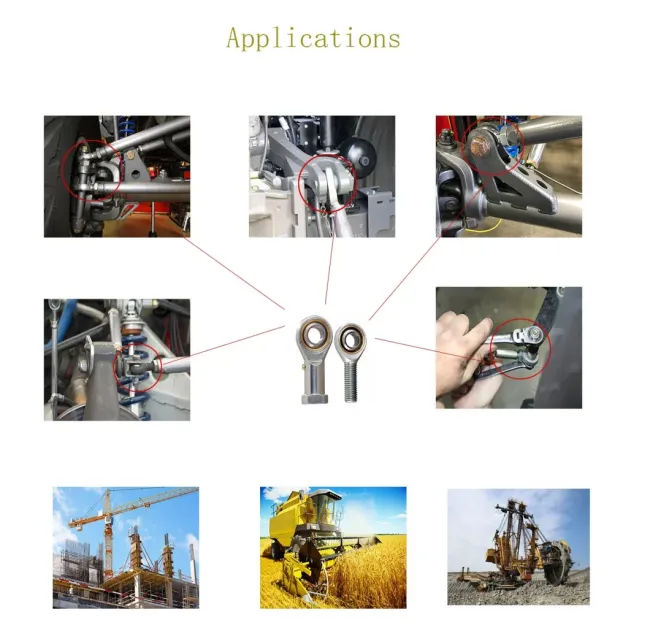

Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
Technical specification
- Rod body with right or left-hand female thread.
- Outer race lined with bronze liner.
- Surface of rod body zinc plated.
- In inch dimension series.
| Bearing No. | Dimensions (mm) | Load ratings (KN) |
Mass | |||||||||||||||
| d | d3 2B |
B | C1 | d1 | R1S | d2 | h1 | L3 min |
L4 | L5 | d4 | d5 | w | α ≈ |
C | C0 | kg | |
| SIZP4S | 4.83 | 10-32 | 7.92 | 6.35 | 7.8 | 0.3 | 15.88 | 26.97 | 14.27 | 34.91 | 4.75 | 7.54 | 10.31 | 7.92 | 10 | 3.4 | 4.6 | 0.015 |
| SIZP6S | 6.35 | 1/4-28 | 9.53 | 7.14 | 8.4 | 0.3 | 19.05 | 33.32 | 19.05 | 42.85 | 4.75 | 9.15 | 11.91 | 9.53 | 13 | 4.5 | 7.7 | 0.025 |
| SIZP7S | 7.94 | 5/16-24 | 11.1 | 8.74 | 11.4 | 0.3 | 22.23 | 34.93 | 19.05 | 46.04 | 4.75 | 10.72 | 12.70 | 11.10 | 10 | 6.9 | 8.4 | 0.036 |
| SIZP9S | 9.53 | 3/8-24 | 12.7 | 10.31 | 13.1 | 0.6 | 25.40 | 41.28 | 23.80 | 53.98 | 6.35 | 13.89 | 17.45 | 14.27 | 9 | 9.4 | 10.0 | 0.061 |
| SIZP11S | 11.11 | 7/16-20 | 14.27 | 11.10 | 14.9 | 0.6 | 28.58 | 46.02 | 26.97 | 60.31 | 6.35 | 15.49 | 19.05 | 15.88 | 11 | 11.0 | 13.0 | 0.081 |
| SIZP12S | 12.70 | 1/2-20 | 15.88 | 12.70 | 17.7 | 0.6 | 33.32 | 53.98 | 30.15 | 70.64 | 6.35 | 18.67 | 22.23 | 19.05 | 9 | 15.0 | 19.0 | 0.133 |
| SIZP15S | 15.88 | 5/8-18 | 19.05 | 14.27 | 21.3 | 0.6 | 38.10 | 63.50 | 38.10 | 82.55 | 7.92 | 21.84 | 25.40 | 22.23 | 11 | 20.0 | 21.0 | 0.190 |
| SIZP19S | 19.05 | 3/4-16 | 22.23 | 17.45 | 24.8 | 0.6 | 44.45 | 73.03 | 44.45 | 95.25 | 7.92 | 25.02 | 28.58 | 25.40 | 10 | 29.0 | 29.0 | 0.285 |
| SIZP25S | 25.40 | 5/4-12 | 34.93 | 25.40 | 32.2 | 0.6 | 69.85 | 104.78 | 53.98 | 139.70 | 11.10 | 37.72 | 44.45 | 38.10 | 14 | 60.0 | 101.0 | 1.000 |
