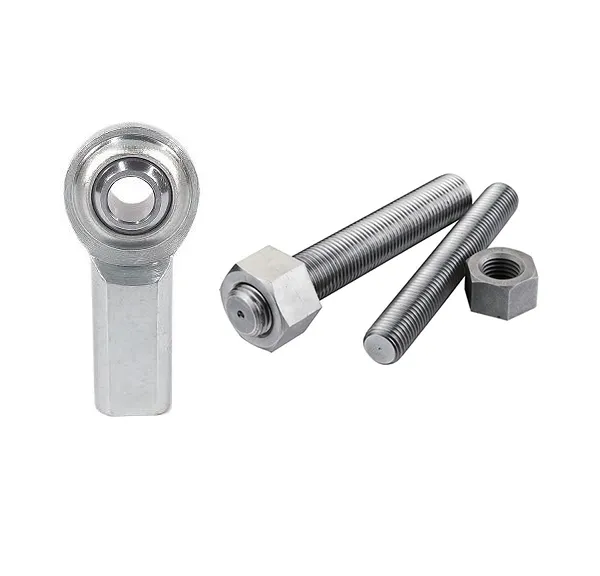

CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

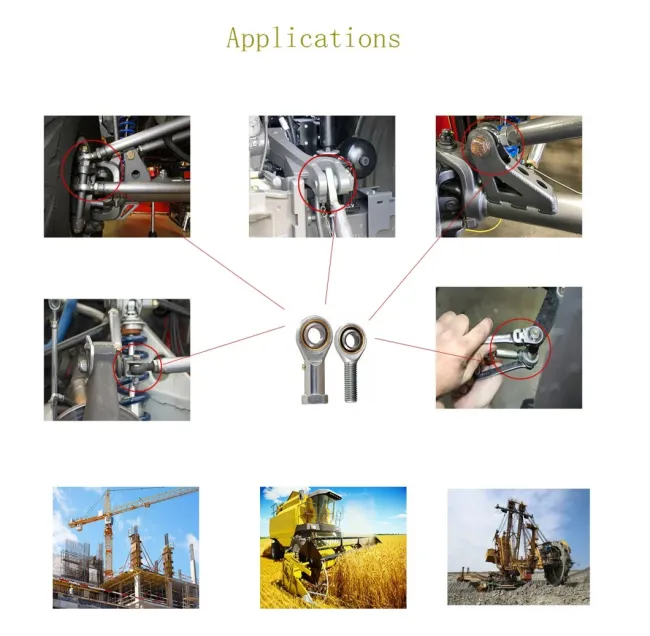

Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
Technical specification
Sliding contact surfaces: Steel/steel
Inner ring:Carbon steel,Zinc plated
Outer ring:Low carbon steel,Heat treated: HRC55
Stub:Carbon steel Zinc plated

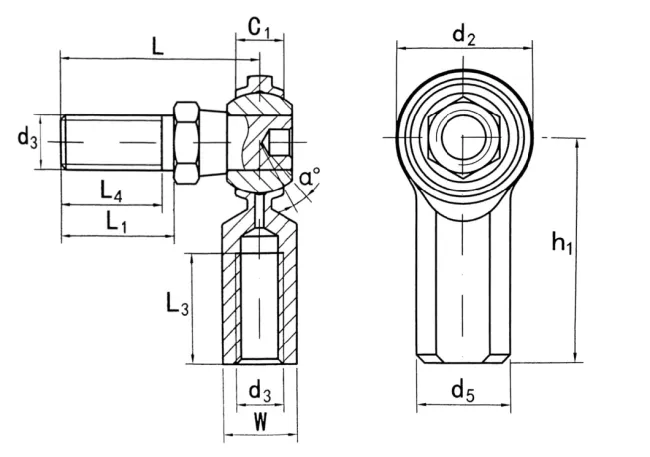

| Bearing No. | Dimensions (mm) | Load ratings kN | Mass kg |
||||||||||||
| Right hand | Left hand | d3 UNF-2B |
w | C1 | d2 | h1 | L3 min |
L | L1 | L4 | d5 | α ≈ |
|||
| CF 3 Y | CFL 3 Y | 10-32 | 7.92 | 5.94 | 15.88 | 26.97 | 12.7 | 25.4 | 12.7 | 11.1 | 10.31 | 10 | 9.247 | 0.023 | |
| CF 4 Y | CFL 4 Y | 1/4-28 | 9.53 | 6.35 | 19.05 | 33.32 | 17.45 | 26.19 | 14.27 | 12.7 | 11.91 | 13.5 | 14.269 | 0.027 | |
| CF 5 Y | CFL 5 Y | 5/16-24 | 11.10 | 7.92 | 22.23 | 34.93 | 17.45 | 30.96 | 17.45 | 15.06 | 12.7 | 11 | 17.009 | 0.050 | |
| CF 6 Y | CFL 6 Y | 3/8-24 | 14.27 | 9.12 | 25.4 | 41.28 | 20.62 | 39.67 | 23.01 | 20.62 | 17.45 | 11 | 22.627 | 0.077 | |
| CF 7 Y | CFL 7 Y | 7/16-20 | 15.88 | 10.31 | 28.58 | 46.02 | 23.8 | 44.45 | 26.97 | 23.8 | 19.05 | 10.5 | 28.400 | 0.122 | |
| CF 8 Y | CFL 8 Y | 1/2-20 | 19.05 | 11.5 | 33.32 | 53.98 | 26.97 | 50.8 | 28.58 | 25.4 | 22.23 | 10 | 40.459 | 0.181 | |
| CF 10 Y | CFL 10 Y | 5/8-18 | 22.23 | 12.29 | 38.1 | 63.50 | 34.93 | 63.5 | 38.1 | 34.93 | 25.4 | 13 | 43.203 | 0.308 | |
| CF 12 Y | CFL 12 Y | 3/4-16 | 25.40 | 15.06 | 44.45 | 73.03 | 39.67 | 76.2 | 46.02 | 41.28 | 28.58 | 12 | 63.193 | 0.504 | |
