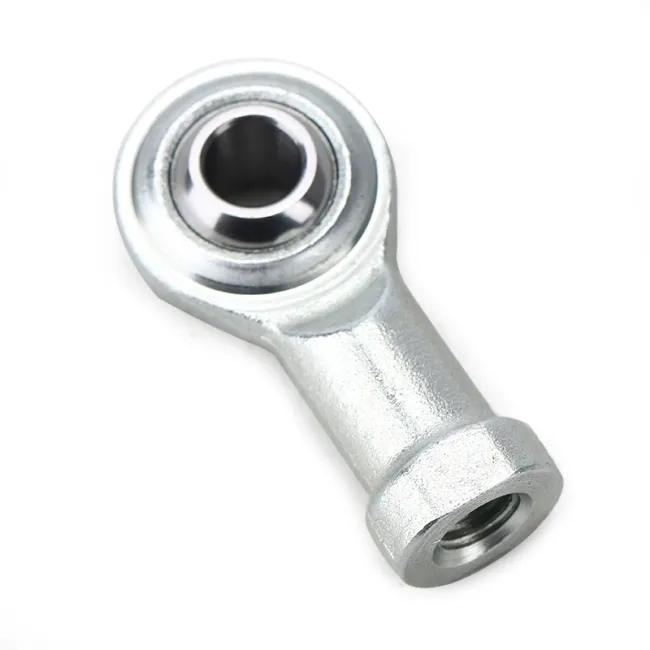

SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

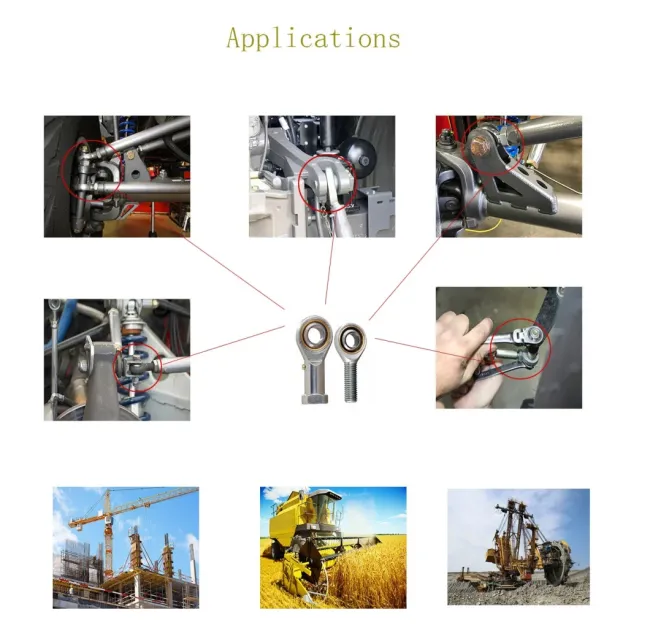

Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
Technical specification
- Rod body with right or left-hand female thread.
- Rod body pressed around inner ring.
- Surface of rod body zinc plated.
- In inch dimension series.
| Bearing No. |
Dimensions (mm) | Load ratings (KN) |
Mass | |||||||||||||||
| d | d3 2B |
B | C1 | d1 min |
R1S | d2 | h1 | l3 | l4 | l5 | d4 | d5 | w | α ≈ |
C | C0 | kg | |
| SIZJ4 | 4.83 | 10-32 | 7.92 | 5.94 | 7.80 | 0.3 | 15.88 | 26.97 | 12.70 | 34.93 | 4.75 | 7.54 | 10.31 | 7.92 | 10.0 | 3.6 | 6.8 | 0.018 |
| SIZJ6 | 6.35 | 1/4-28 | 9.53 | 6.35 | 8.40 | 0.3 | 19.05 | 33.32 | 15.88 | 42.85 | 4.75 | 9.15 | 11.91 | 9.53 | 13.5 | 5.4 | 9.6 | 0.023 |
| SIZJ7 | 7.94 | 5/16-24 | 11.1 | 7.92 | 11.40 | 0.3 | 22.23 | 34.93 | 15.88 | 46.02 | 4.75 | 10.72 | 12.70 | 11.10 | 11.0 | 8.5 | 12.0 | 0.036 |
| SIZJ9 | 9.53 | 3/8-24 | 12.7 | 9.12 | 13.10 | 0.6 | 25.40 | 41.28 | 19.05 | 53.98 | 6.35 | 13.89 | 17.45 | 14.27 | 11.0 | 11.0 | 16.0 | 0.059 |
| SIZJ11 | 11.11 | 7/16-20 | 14.27 | 10.31 | 14.90 | 0.6 | 28.58 | 46.02 | 22.23 | 60.33 | 6.35 | 15.49 | 19.05 | 15.88 | 10.5 | 14.0 | 21.0 | 0.082 |
| SIZJ12 | 12.70 | 1/2-20 | 15.88 | 11.50 | 17.70 | 0.6 | 33.32 | 53.98 | 25.40 | 70.64 | 6.35 | 18.67 | 22.23 | 19.05 | 10.0 | 18.0 | 28.0 | 0.132 |
| SIZJ15 | 15.88 | 5/8-18 | 19.05 | 12.29 | 21.30 | 0.6 | 38.10 | 63.50 | 31.75 | 85.55 | 7.92 | 21.84 | 25.40 | 22.23 | 13.0 | 23.0 | 29.0 | 0.195 |
| SIZJ19 | 19.05 | 3/4-16 | 22.23 | 15.06 | 24.80 | 0.6 | 44.45 | 73.03 | 34.93 | 95.25 | 7.92 | 25.02 | 28.58 | 25.40 | 12.0 | 34.0 | 44.0 | 0.295 |
