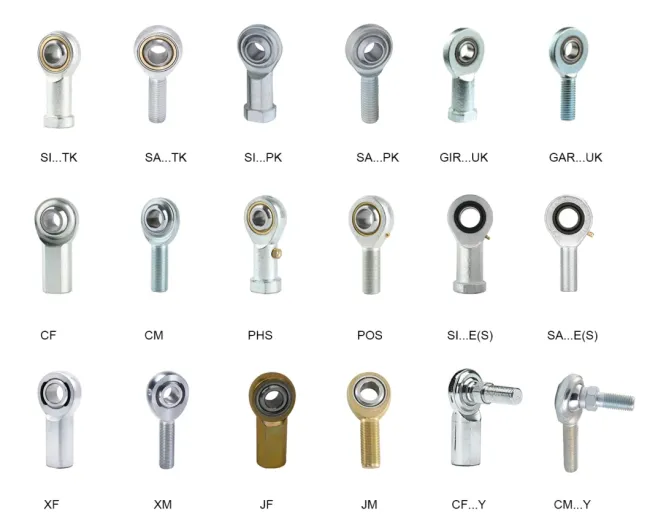

SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Heim Joint/ Bearings(GAR30DO GAR35DO GAR40DO)

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

Applications:

• agriculture
• construction
• forklift trucks
• material handling
• metals
• mining
• railways
• trucks
• wind energy

Product Parameters

Technical specification:

Interchange Series : SAA...ES/ GAR...DO / EA.../GAR...ES


Specification:

- Rod body with right or left-hand male thread.

- It is made up of a radial spherical plain bearing GE .. E (S) or GE .. ES 2RS and rod body.

- Surface of rod body zinc plated,housing of SA..ES with a lubricating hole or grease nipple.



Bearing No.	Dimensions (mm)
	d	B	C	D	h1	L4	L3	6H	α°	(g)
GAR 6 DO	6	6	4.4	21	36	56.5	18	M6	13	18
GAR 8 DO	8	8	6	24	42	54	22	M8	15	32
GAR 10 DO	10	9	7	29	48	62.5	26	M10	12	54
GAR 12 DO	12	10	8	34	54	71	28	M12	11	86
GAR 15 DO	15	12	10	40	63	83	34	M14	8	140
GAR 17 DO	17	14	11	46	69	92	36	M16	10	200
GAR 20 DO-2RS	20	16	13	53	78	104.5	43	M20x1.5	9	310
GAR 25 DO-2RS	25	20	17	64	94	126	53	M24x2	7	560
GAR 30 DO-2RS	30	22	19	73	110	146.5	65	M30x2	6	890
GAR 35 DO-2RS	35	25	21	82	140	181	82	M36x3	6	1400
GAR 40 DO-2RS	40	28	23	92	150	196	86	M39x3	7	1800
GAR 45 DO-2RS	45	32	27	102	163	214	94	M42x3	7	2600
