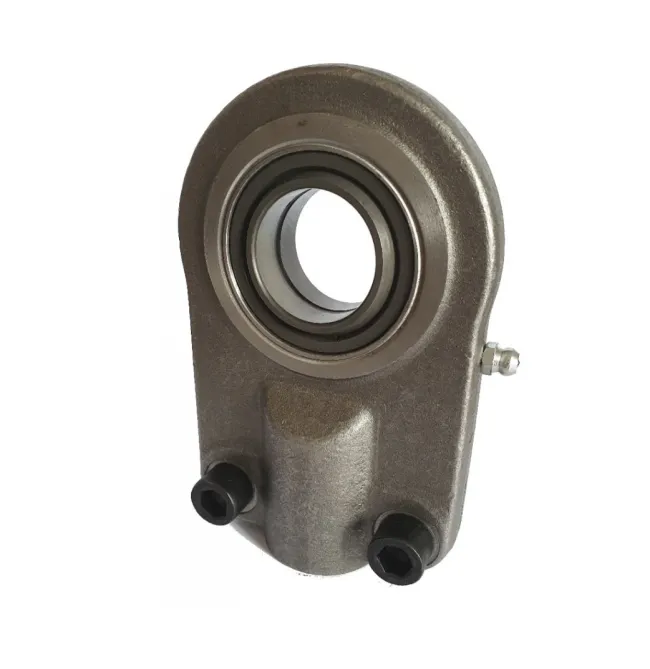

Hydraulic Rod Ends ( 25KI1149 32KI1149 40KI1149 50KI1149 63KI1149)
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.
Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
Technical specification
Interchange Series : GIHO-K...DO / K11149
-Rod ends housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE... ES or GE... ES 2RS and rod end housing.
-With locking slot and nut.
-Rod end housing with a lubricating hole or grease nipple.

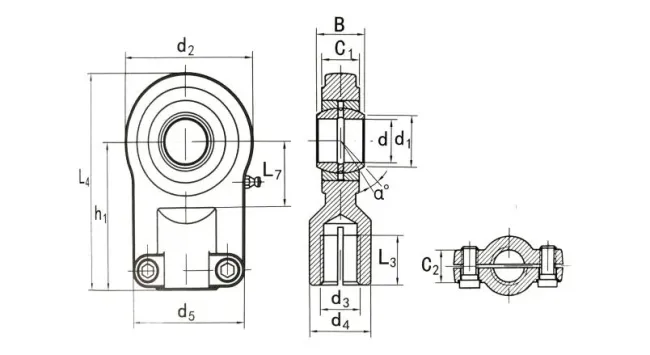

| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||||||||
| d | d3 6H |
d4 | L3 min |
B | C1 | d2 | L7 min |
h1 | L4 | d5 | d1 | C2 | a | C | C0 | kg | |
| GIHO-K 12 DO* | 12 | M10x1.25 | 17 | 15 | 10 | 8 | 35 | 16 | 42 | 59.5 | 40 | 15.0 | 13 | 11 | 10.8 | 17.0 | 0.12 |
| GIHO-K 16 DO | 16 | M12x1.25 | 21 | 17 | 14 | 11 | 45 | 20 | 48 | 70.5 | 45 | 20.7 | 13 | 10 | 21.1 | 28.5 | 0.22 |
| GIHO-K 20 DO | 20 | M14x1.5 | 25 | 19 | 16 | 13 | 55 | 25 | 58 | 85.5 | 55 | 24.2 | 17 | 9 | 30.0 | 42.5 | 0.43 |
| GIHO-K 25 DO | 25 | M16x1.5 | 30 | 23 | 20 | 17 | 65 | 30 | 68 | 100.5 | 62 | 29.3 | 17 | 7 | 48.0 | 67.0 | 0.67 |
| GIHO-K 30 DO | 30 | M20x1.5 | 36 | 29 | 22 | 19 | 80 | 35 | 85 | 125.0 | 77 | 34.2 | 19 | 6 | 62.0 | 108.0 | 1.25 |
| GIHO-K 40 DO | 40 | M27x2.0 | 45 | 37 | 28 | 23 | 100 | 45 | 105 | 155.0 | 90 | 45.0 | 23 | 7 | 100.0 | 156.0 | 2.16 |
| GIHO-K 50 DO | 50 | M33x2.0 | 55 | 46 | 35 | 30 | 120 | 58 | 130 | 190.0 | 105 | 55.9 | 30 | 6 | 156.0 | 245.0 | 3.90 |
| GIHO-K 60 DO | 60 | M42x2.0 | 68 | 57 | 44 | 38 | 160 | 68 | 150 | 230.0 | 134 | 66.8 | 38 | 6 | 245.0 | 380.0 | 7.15 |
| GIHO-K 80 DO | 80 | M48x2.0 | 90 | 64 | 55 | 47 | 205 | 82 | 185 | 287.5 | 156 | 89.4 | 47 | 6 | 400.0 | 585.0 | 15.00 |
| GIHO-K 10 0DO | 100 | M64x3.0 | 110 | 86 | 70 | 55 | 240 | 116 | 240 | 360.0 | 190 | 109.5 | 55 | 7 | 610.0 | 865.0 | 27.30 |
