Inch Size GEZ...FO 2RS Series Radial Spherical Plain Bearings (GEZ31FO 2RS GEZ38FO 2RS GEZ44FO 2RS GEZ50FO 2RS GEZ57FO )
Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
- Radial Spherical Plain Bearings
- Angular Contact Spherical Plain Bearings
- Thrust Spherical Plain Bearings
- Non-standard Spherical Plain Bearings

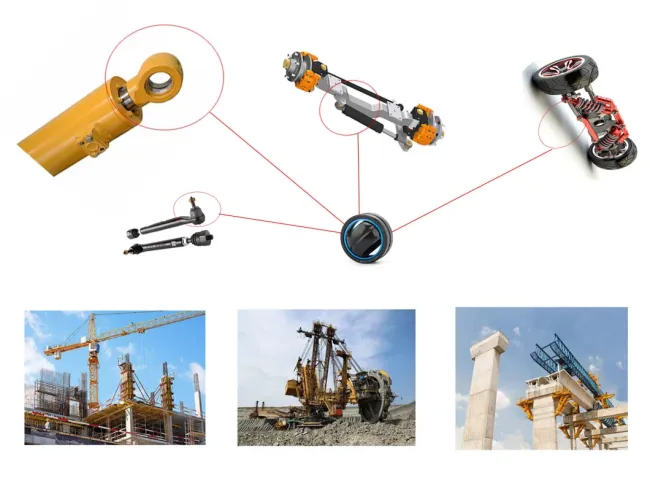

Applications:
Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Technical specification
GEZ…FO-2RS:As series GE…FO-2RS,but with inch dimensions.
Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race. With dual seals.
5) Lubricant: molybdenum disulfide.
6) Properties: Heavy duty, good wearability, corrosion resistance, self-alignment, dust proof.
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | Co | kg | |
| GEZ 31 FO 2RS | 31.75 | 61.913 | 35.306 | 28.575 | 54.7 | 0.6 | 1 | 15 | 125 | 375 | 0.454 |
| GEZ 38 FO 2RS | 38.10 | 71.438 | 40.132 | 33.325 | 63.9 | 0.6 | 1 | 14 | 170 | 510 | 0.726 |
| GEZ 44 FO 2RS | 44.45 | 80.963 | 46.228 | 38.100 | 73.0 | 0.6 | 1 | 14 | 224 | 670 | 1.140 |
| GEZ 50 FO 2RS | 50.80 | 90.488 | 52.578 | 42.850 | 82.0 | 0.6 | 1 | 14 | 280 | 850 | 1.680 |
| GEZ 57 FO 2RS | 57.15 | 100.013 | 58.877 | 47.625 | 92.0 | 0.6 | 1 | 14 | 355 | 1060 | 2.010 |
| GEZ 63 FO 2RS | 63.50 | 111.125 | 64.643 | 52.375 | 100.0 | 1.0 | 1 | 14 | 415 | 1250 | 2.950 |
| GEZ 69 FO 2RS | 69.85 | 120.650 | 70.866 | 57.150 | 109.5 | 1.0 | 1 | 14 | 500 | 1500 | 3.630 |
| GEZ 76 FO 2RS | 76.20 | 130.175 | 76.759 | 61.900 | 119.0 | 1.0 | 1 | 14 | 585 | 1760 | 4.360 |
| GEZ 82 FO 2RS | 82.55 | 139.700 | 82.931 | 66.675 | 128.0 | 1.0 | 1 | 14 | 680 | 2040 | 5.310 |
| GEZ 88 FO 2RS | 88.90 | 149.225 | 90.424 | 71.425 | 137.0 | 1.0 | 1 | 14 | 780 | 2360 | 6.810 |
| GEZ 95 FO 2RS | 95.25 | 158.750 | 94.945 | 76.200 | 146.0 | 1.0 | 1 | 14 | 900 | 2650 | 8.850 |
| GEZ 101 FO 2RS | 101.60 | 177.800 | 107.315 | 85.725 | 164.5 | 1.0 | 1 | 10 | 1120 | 3400 | 10.200 |
| GEZ 114 FO 2RS | 114.30 | 196.850 | 119.126 | 95.250 | 183.0 | 1.0 | 1 | 10 | 1400 | 4150 | 13.600 |
| GEZ 139 FO 2RS | 139.70 | 222.250 | 125.730 | 104.775 | 207.0 | 1.0 | 1 | 9 | 1730 | 5200 | 20.400 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
